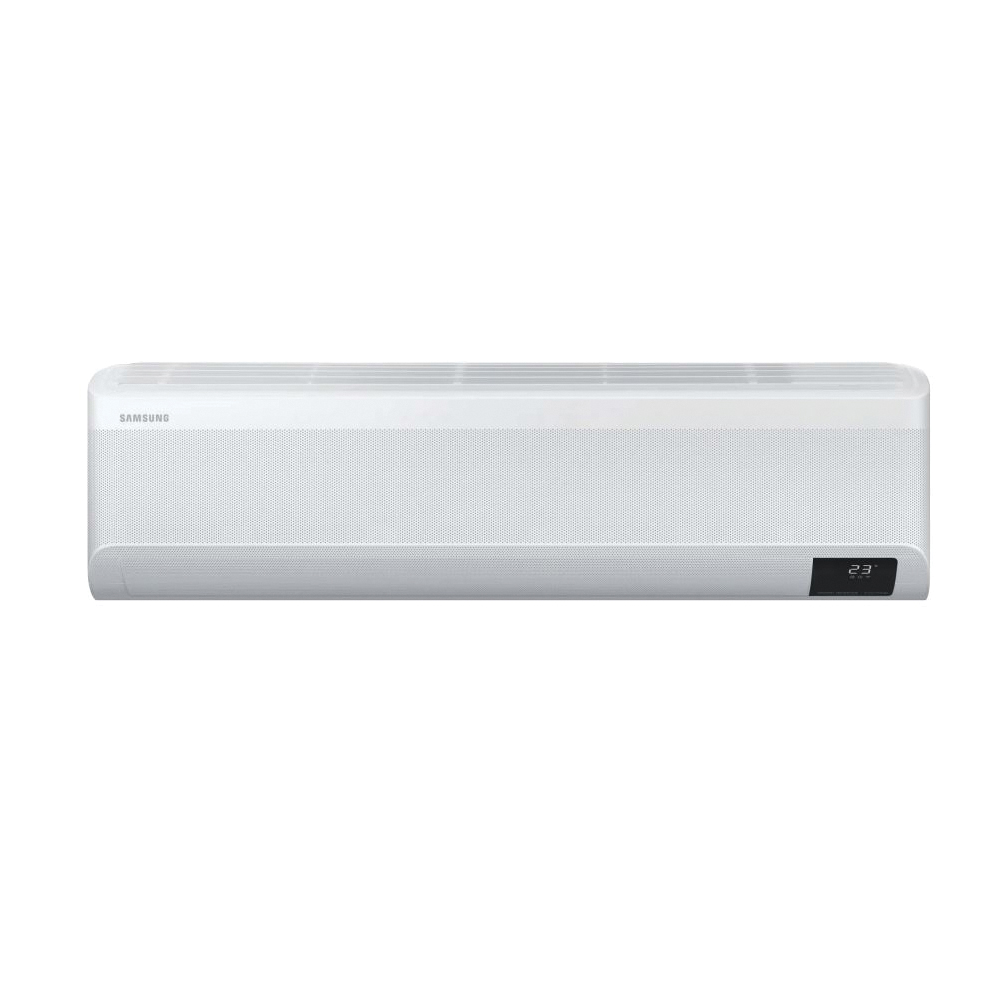

Samsung Multi-Split Indoor Unit, 208-230 V, 0.3 A, 3.52 kW, 60 Hz, 1 ph, 3 Fan Speeds, 12000 Btu/hr, 340 to 396 cfm Cooling, 343 to 413 cfm Heating, Flared Connection, R-32 Refrigerant, Tonnage: 1 ton, 38 dBA Sound Level, Wall Mounting, Polystyrene, 64 to 90 deg F Cooling, <=86 deg F Heating, 32-5/16 in Overall Length, 13-9/16 in Overall Width, 8-7/16 in Overall Height, For Use With: Multi-Zone Systems, Brushless DC Motor, 14 AWG Wire Size, 1/4 in Liquid Line, 3/8 in Suction Line
- BTU 12K
Instruction/Installation Manual
- The indoor unit shall feature WindFree™* mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants
- The indoor unit shall feature a PM1.0 electrostatic precipitator filter capable of capturing dust particles as small as 1 micron
- The indoor unit shall be capable of sensing dust particulate matter in the air stream and displaying the appropriate measured data on the unit's display
- The indoor unit shall have integral Wi-Fi capability as standard
- The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable
- The Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket
- The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service
- The heat exchanger shall be mechanically bonded fin to copper tube
- Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
- The indoor fan shall be a single, antibacterial cross-flow type
- Three fan speeds and auto settings
- Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers
- The indoor unit shall ship with a rechargeable, solar-cell wireless controller. The wireless controller battery shall be charged with a USB C cable or the integral solar panel
- The included wireless controller shall have a pixel display that is visible in low light conditions
- The indoor unit shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app
- Dual set temperature support when connected to supported wired controllers
- The indoor unit shall have a simple connection for condensate overflow detection devices or any normally closed contact for simple unit shutdown
- Interconnect control wire between the outdoor and indoor unit shall be 16AWG X 2
- 7-segment digital display on the front of the unit to display temperature and unit status
- Washable main filter as standard accessible from the top of the unit
