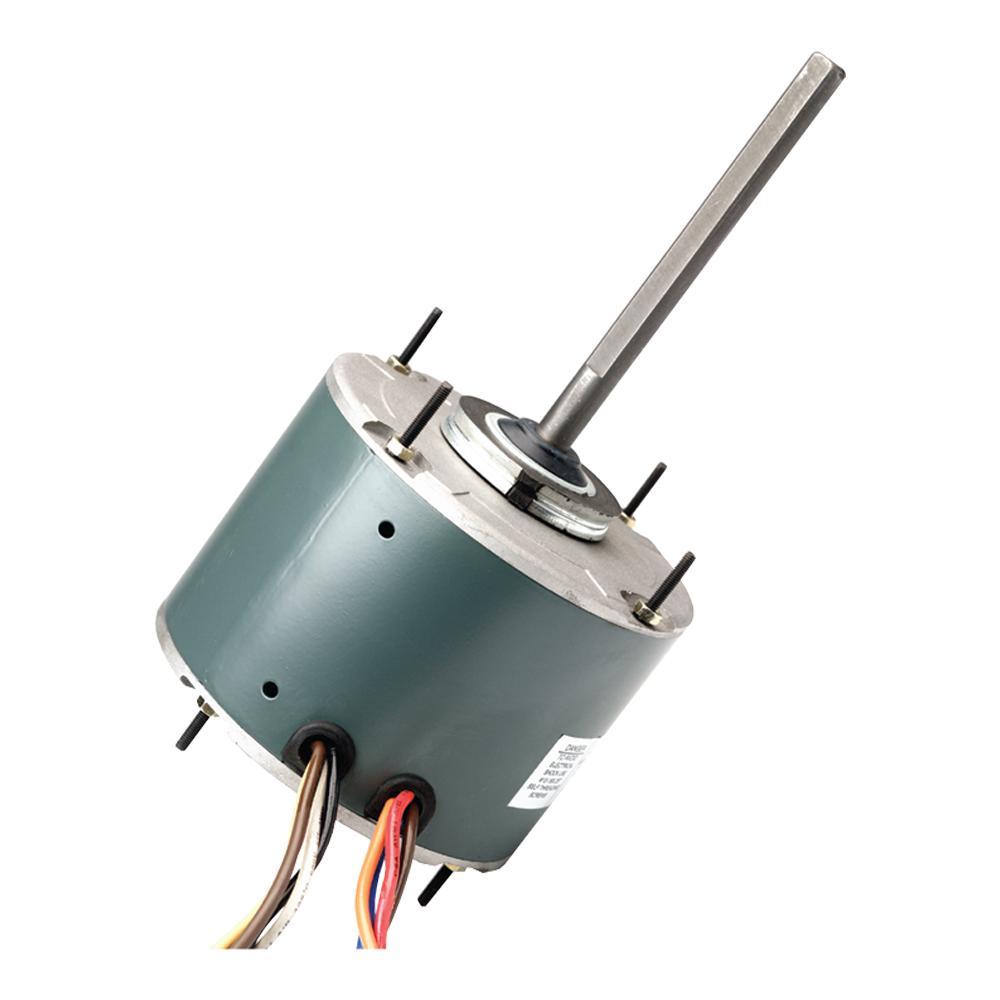

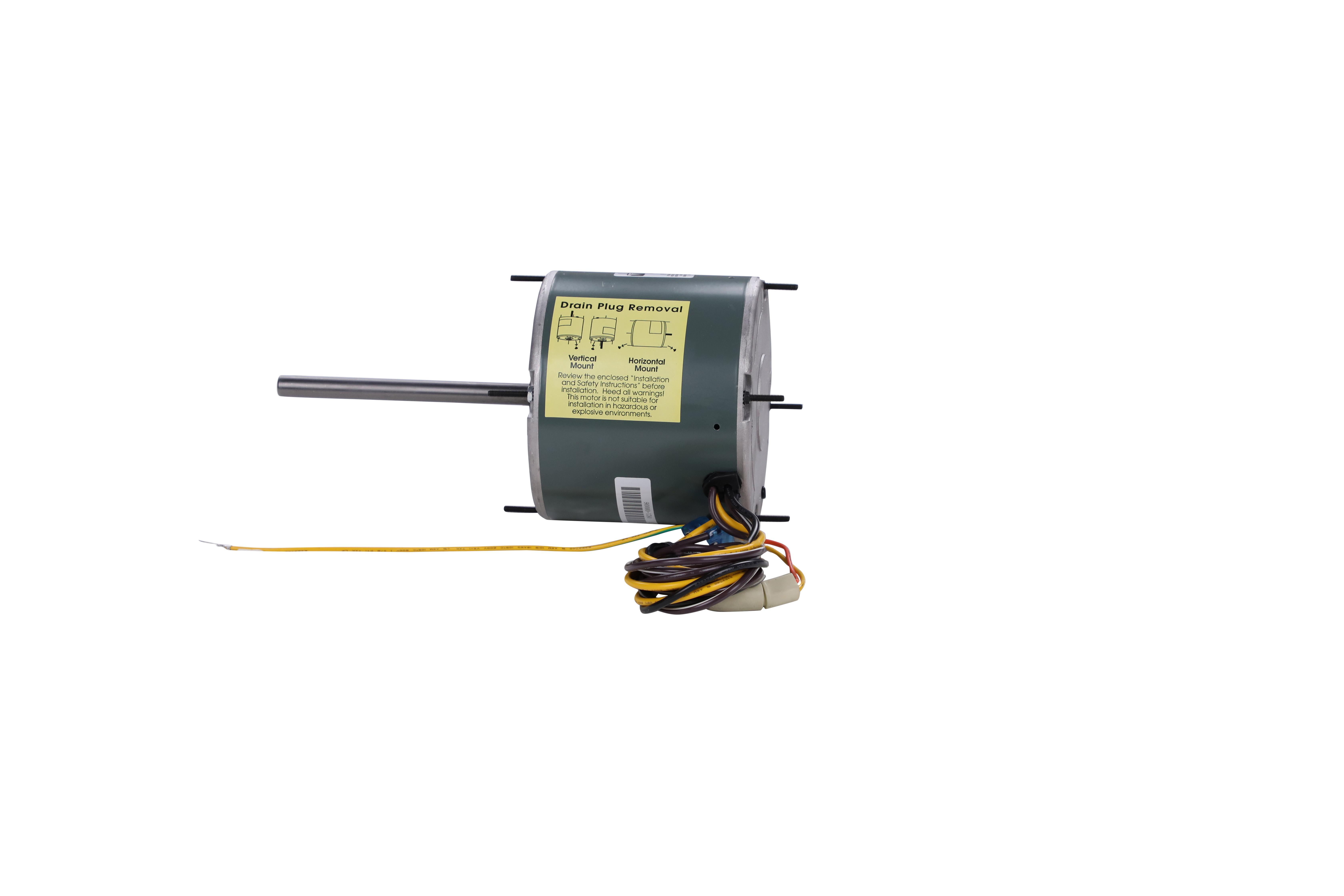

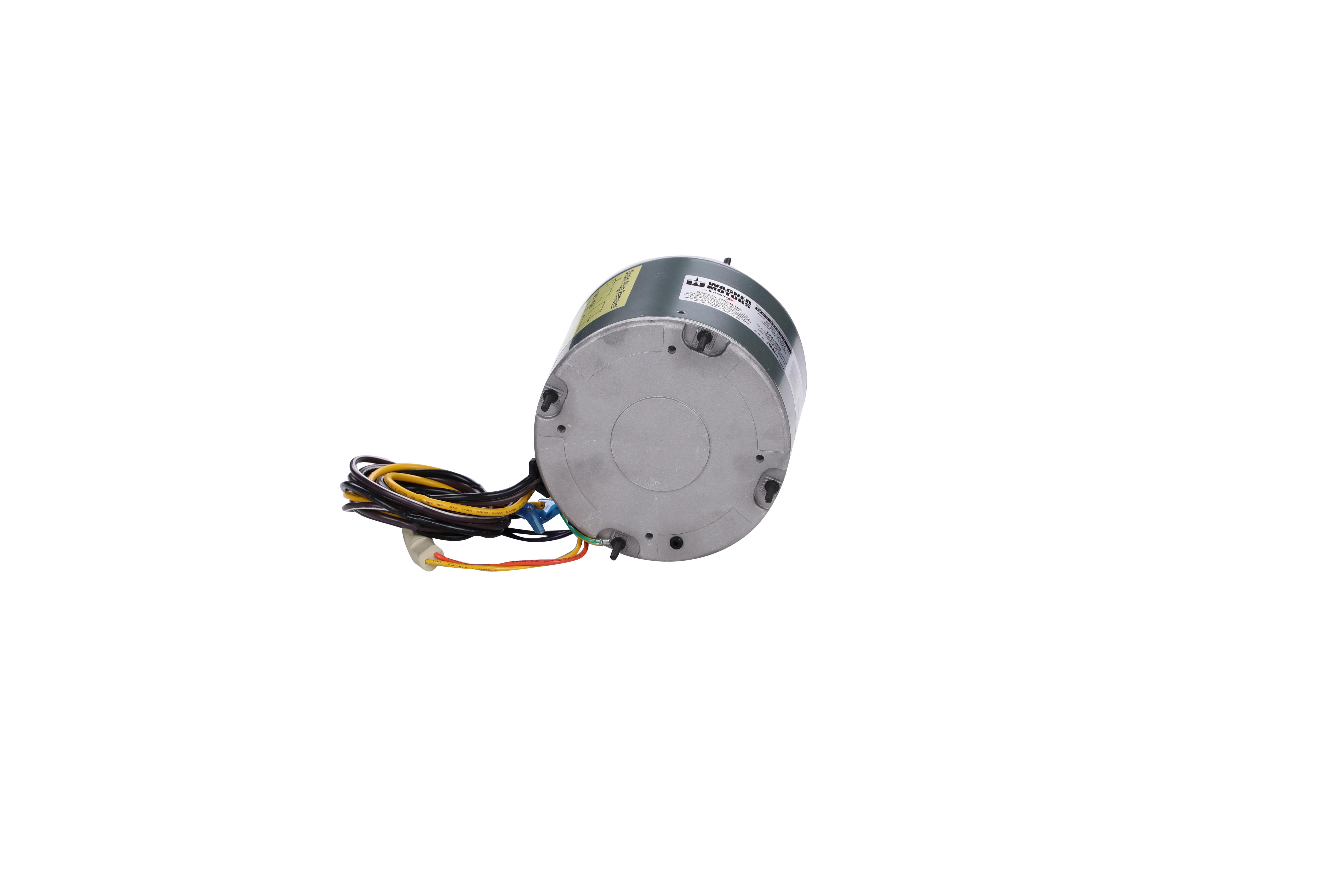

Wagner by Diversitech - Wagner by Diversitech WG840728 Condenser Fan Motor, TEAO Enclosure, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
- Item #: WG840728
- Manufacturer: WG840728 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Wagner by Diversitech
- Min. Order Qty: 1
- Qty. Interval: 1
This Wagner® WG840728 Condenser Fan Motors, Single Speed, 1/4HP, 1075/1 RPM, 1.4FLA, 208-230V, 60C ambient condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in. leads and operates on 60 Hz frequency with low power consumption.
Wagner by Diversitech Condenser Fan Motor, Condenser Fan Motors Application, 1/4 hp, 208 to 230 VAC, 2.2 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TEAO Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Belly Band/Shaft Up/Down Mounting, 60 deg C, Insulation Class: Class B, 5.59 in Dia x 10.584 in L Dimensions
- Motor HP 1/4 HP
- Type DIVERSITECH WAGNER MOTORS
- Voltage 208 to 230V
-
Catalog
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_WG840731_Catalog.pdf
-
Instruction/Installation Manual
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_WG840731_Manual.pdf
-
Specification Sheet
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_WG840731_Specification_Sheet.pdf
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
