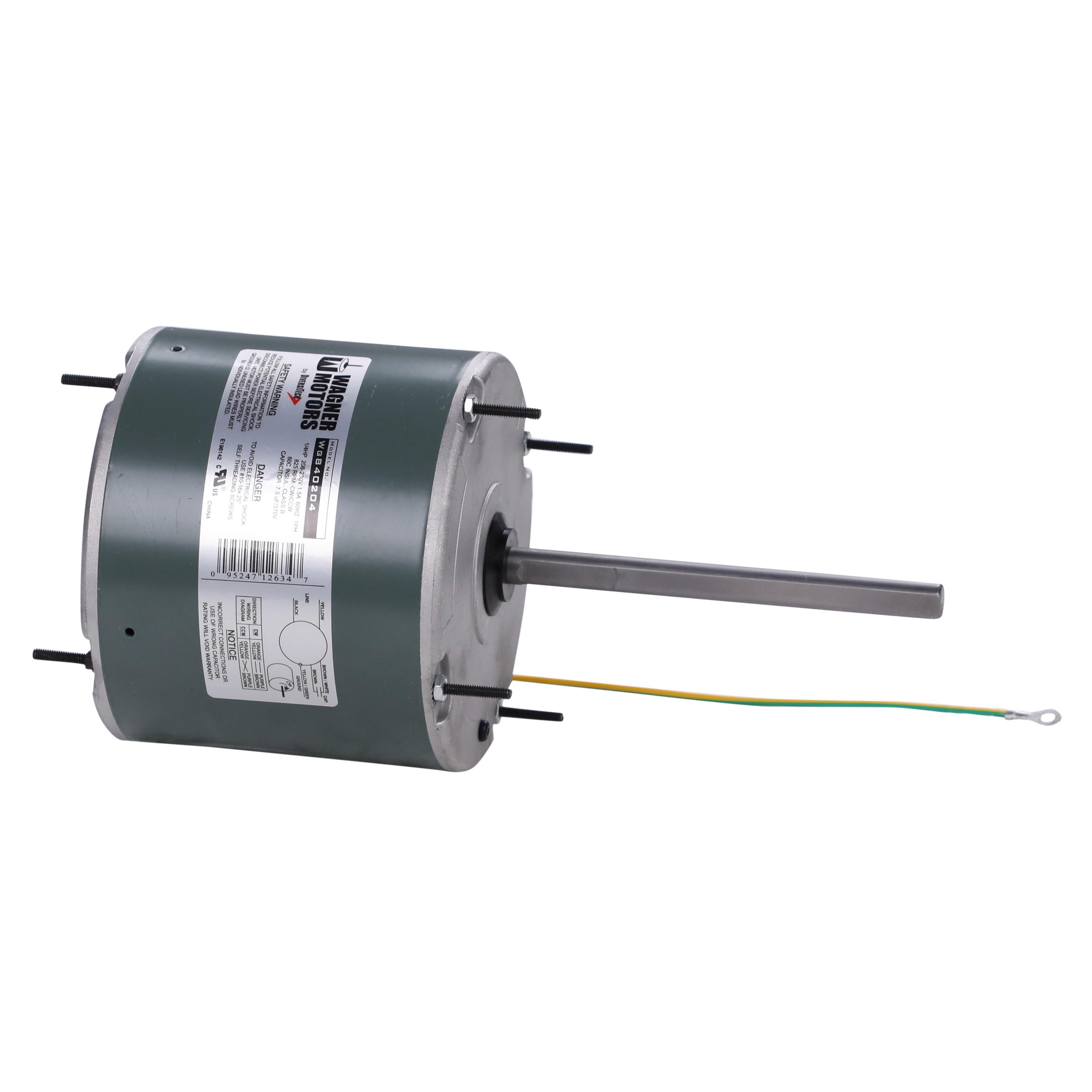

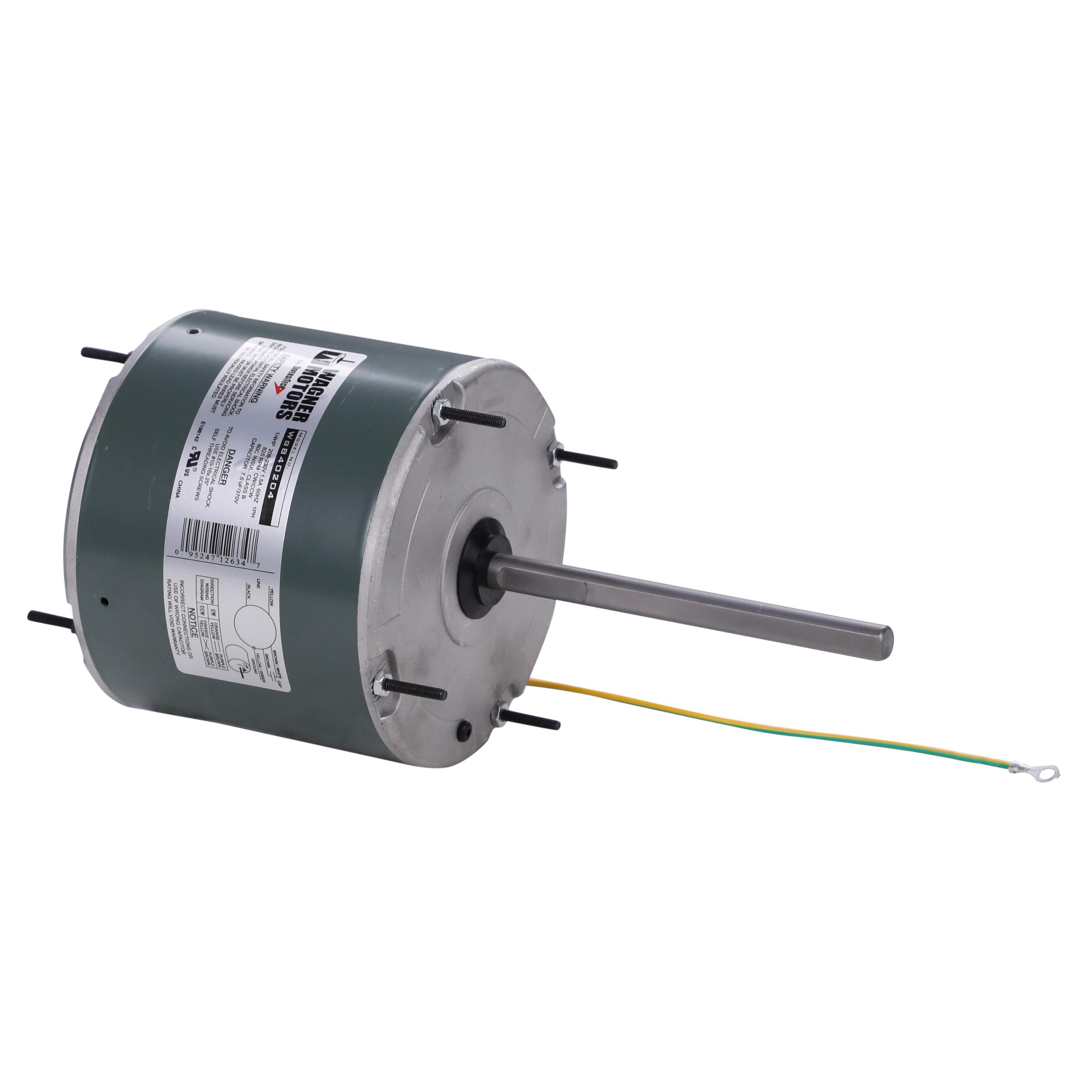

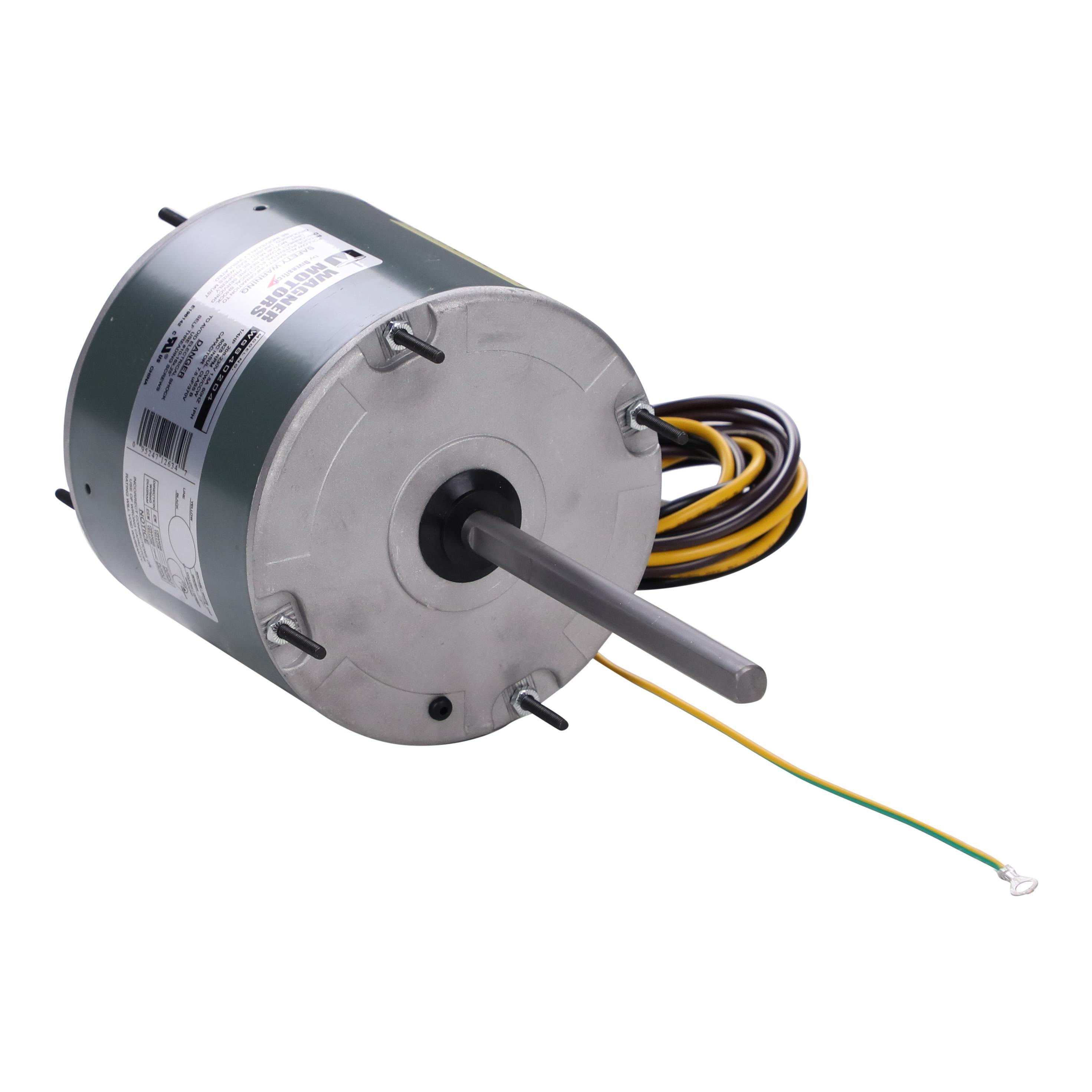

Wagner by Diversitech - Wagner by Diversitech WG840468 Multi-Horsepower Direct Drive Furnace Blower Motor, 1/2, 1/3, 1/4, 1/5 hp, 208/230 VAC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
- Item #: WG840468
- Manufacturer: WG840468 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Wagner by Diversitech
- Min. Order Qty: 1
- Qty. Interval: 1
This Wagner® WG840468 Multiple Horsepower Condenser Fan Motors, 208-230V, 1075/2 Speed, 1/2HP MAX is specially designed to cover a range of applications. The condenser fan motor is electrically reversible and features high and low speeds.
Wagner by Diversitech Direct Drive Furnace Blower Motor, Multi-Horsepower, Condenser Fan Motors Application, 1/2, 1/3, 1/4, 1/5 hp, 208/230 VAC, 3/2.5/2/1.3 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 2 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Belly Band/Shaft Up/Down Mounting, 140 deg F, Insulation Class: Class B, 5.59 in Dia x 10.276 in L Dimensions
- Motor HP 1/2 HP
- Voltage 208 to 230V
- Motor RPM 1075 RPM
- Service Factor 1
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_WG840731_Catalog.pdf- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
