Our pro is 100% electrically tested to withstand whatever is thrown at it. TITAN PRO® is built from quality, proprietary materials such as a heavy edge aluminum/zinc polypropylene film which helps prevent the degrading effects which may otherwise cause premature failure.

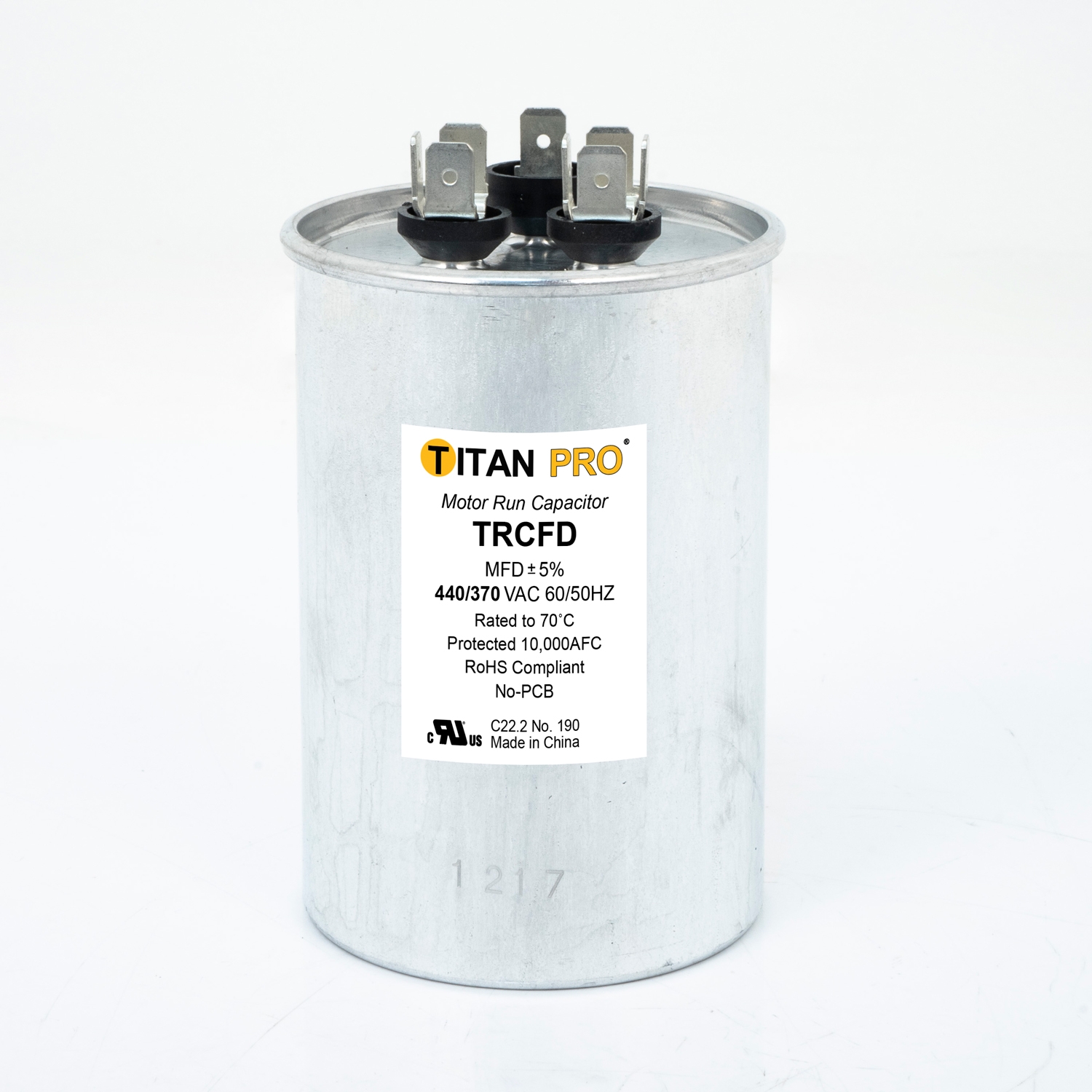

TITAN PRO® Motor Run Capacitor, Series: TRCFD Series, 30 uF, 370/440 V, Round, Aluminum Housing, 1.97 in Dia, 3.94 in Overall Height, 2 Sections
- Capacitance 30 uF
- Voltage Rating 370/440 V
- Shape Round
Catalog.jpg){kind=link}
- Reliable operational life
- Flexible - Titan Pro 440/370 V design reduces inventory
- Built to the toughest international standards for AC motor run capacitors including EIA 456A and IEC 60252-1:2001
- 100% electrical testing
- Reinforced: Heavy edge metalized polypropylene film is used for the dielectric, the dielectric coils are impregnated under vacuum and high-temperature with a proprietary biodegradable oil, second generation anti-explosion safety switch
- Application requirements - less than or equal to 2000 m altitude, residual voltage while loadings less than 10% of rated voltage, permissible maximum current is less than 1.3 times of rated current
