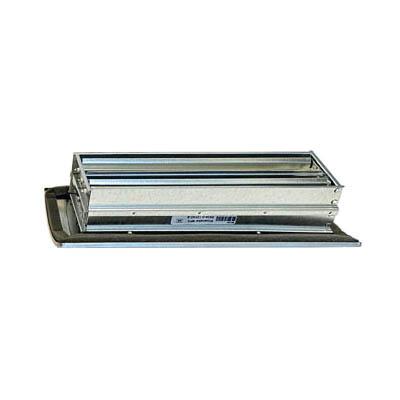

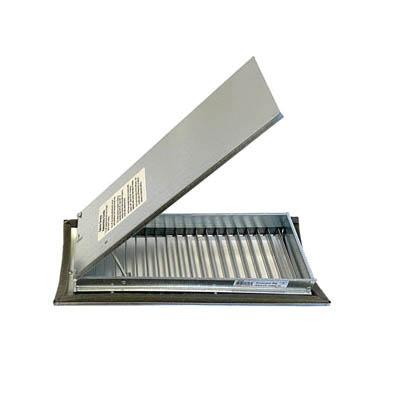

Shoemaker - Shoemaker SD Series SD52-14 Transition Box Spiral Pipe Grille, Galvanized

  • Item #: SD52-14
  • Manufacturer: SD52-14
  • Brand Name: Shoemaker
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
loading

Shoemaker Transition Box Spiral Pipe Grille, Series: SD Series, Single Deflection, Finish: Galvanized, 14 in Duct, Additional Information: Blade Face Type, Spiral Location, Surface-Mount, Galvanized Blade, 2/3 in Blade Spacing, Steel Frame

  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Shoemaker_RS34_0_16X6W_18_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Shoemaker_SD52_12_Specification_Sheet.pdf
  • Single deflection transition box mount spiral pipe grille
  • Blades are parallel to the shortest dimension
  • Allows for 2-way airflow adjustment
  • Nylon bushings on adj. blades prevent metal on metal rattle

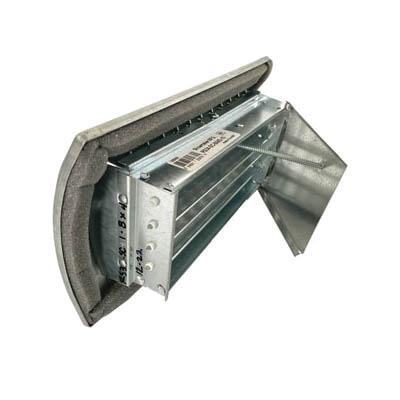

  • Curved saddle with gasket provides airtight fit to spiral pipe
  • Product sizes available to fit spiral pipe diameters 8" - 48." Spiral pipe diameter must be 4" larger than width of grille
  • Galvanized Finish
