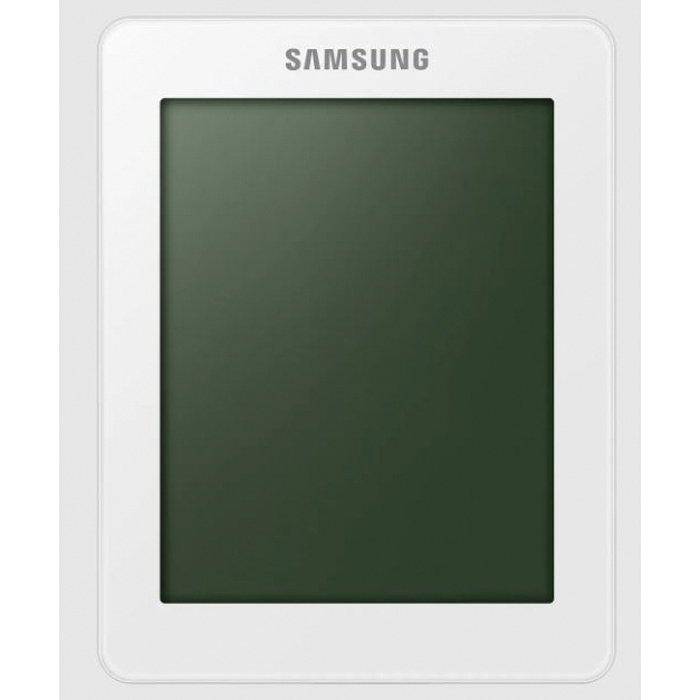

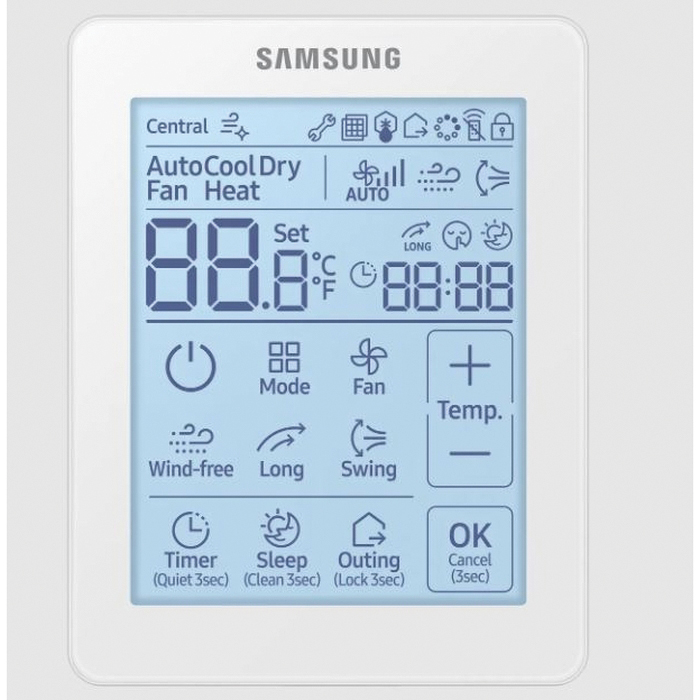

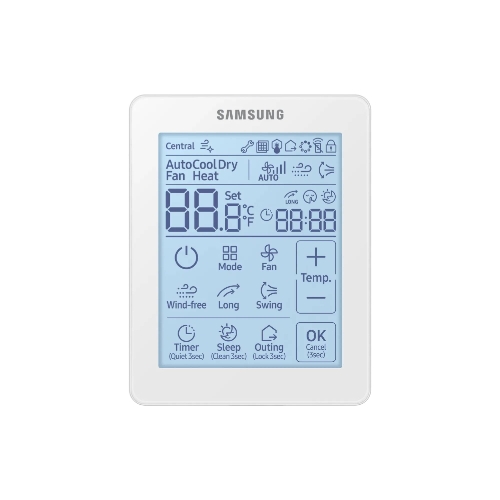

Samsung Simple Touch Wired Controller, 12 V, 328 ft Cable Length, 4-13/16 in Overall Length, 3-11/16 in Overall Width, 3/4 in Overall Depth, For Use With: AM-AA, MCM-D211UN DVM S Systems, MIM-F00N DVM Chiller FCU Kits, AR-NCV Single Zone High Wall RAC Systems, AJ0-N-AA Multi-Zone FJM Indoor Units and AC0-N-AA Single Zone CAC Indoor Units
Instruction/Installation Manual
- Internal temperature sensor
- Backlight
- Built-in infrared receiver to allow control of indoor unit wirelessly with a wireless controller
- Indoor unit operation ON/OFF, operation mode, set temperature, louver position (cassette, ceiling, wall units), WindFree™*, long reach, and fan speed settings
- Error display
- Filter replacement alarm display and reset
- All button lock (option)
- Partial controller button lock (ON/OFF, temperature setting, fan speed, timer function, louver swing, sleep function, quiet function, outing function, and operation mode buttons)
- Upper and lower temperature setting restriction
- Heat, cool, dry, fan, and auto mode skip options (skips specified mode on wired controller)
- Restrict wireless controller signal (optional)
- Single event timer function (ON/OFF control, 30 minutes - 24 hours timer setting options)
- System/indoor unit function and operation indication (defrost, error, restricted controller, central control, and PM filter status)
- Service mode for connected indoor unit operation monitoring, addressing, and setup
- Can be used to specify "Mode Master" while connected to a single indoor unit when used with heat pump systems to control system mode (heating or cooling)
- Outing function to keep a minimum heating (61 - 72 deg F) and cooling (77 - 86 deg F) temperature while you are away. When Outing mode is activated, the unit will operate at the specified Outing temperature. If indoor temperature is 9 deg F different from desired Outing temperature, the indoor unit will turn on. If indoor temperature is the same as desired Outing temperature, the indoor unit will turn off automatically. This is repeated depending on indoor temperature for 12 hours. After 12 hours, Outing mode is released/canceled
- Supports enabling indoor unit AP mode for connecting integral indoor unit Wi-Fi adapter to SmartThings, and turning indoor unit Wi-Fi connection ON/OFF, indoor unit Wi-Fi information reset, and Wi-Fi adapter reset
