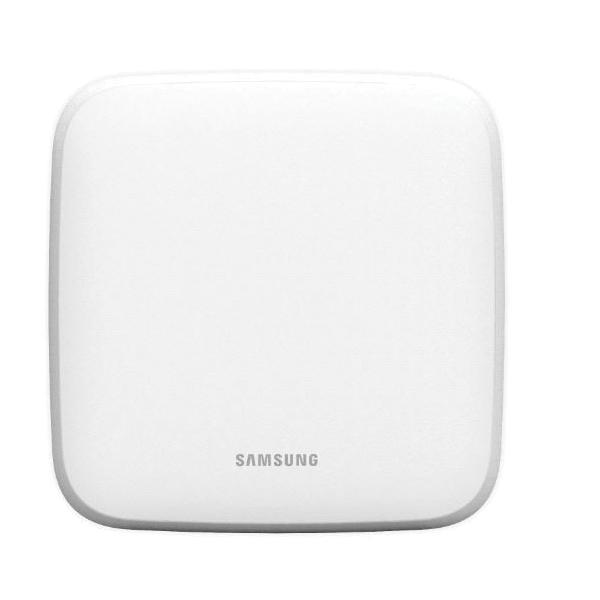

MIM-A60UN will allow control of one indoor unit with a 24 VAC thermostat. A field provided 24 VAC transformer is required (Samsung multi-position AHU's contain a 24 VAC transformer). MIM-A60UN connects to the F3/F4 wired controller communication line, therefore it does not need to be installed on/in the indoor unit(s). Note - central controls (DMS2, DMS2.5, MIM-H03UN, MCM-A300N) cannot be used to control indoor units when using MIM-A60UN but monitoring only.

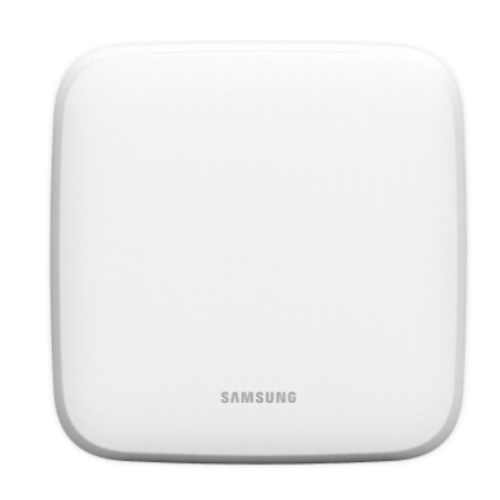

Samsung Thermostat Adapter, 24 V, 2 Stages, On/Off Switch Position, 10 to 85 % Humidity Rating, 32 to 122 deg F, 5-1/8 in H x 5 in W x 1-1/2 in D
- Type Wi-Fi Adapter
- Suitable For Use With FJM Indoor Unit
- Color White
- Dimensions 5-1/8 in H x 5 in W x 1-1/2 in D
Instruction/Installation Manual
- Controls adapter that will allow control of Samsung HVAC systems sold in North America with a standard 24 V thermostat
- One-adapter per indoor unit connected to the F3-F4 communication line
- Supports one or two-stages cooling inputs, one or two-stages heating inputs
- Can be configured to operate the Samsung indoor unit as primary heating source, secondary heating source or cooling only with heat from an external source only
- External contact input to disable the unit when contact is opened
- Emergency heat output to enable an external heating source when the unit is in heating thermal on while in error status
- Indoor unit error state output dry contact
- Separate fan speed settings for thermal on and thermal off
