Samsung HVAC continues to deliver on Samsung's legacy of product innovation and engineering excellence to provide the finest variable refrigerant flow (VRF) systems on the market today. From the award winning, revolutionary triangular design of the Pearl wall-mounted indoor unit to the industry leading* efficiency and capacity range of the DVM S system air conditioner, Samsung offers a complete range of single-zone and multi-zone VRF systems to satisfy modern day design and construction challenges while still providing the homeowners and building occupants the highest level of personalized control and comfort.

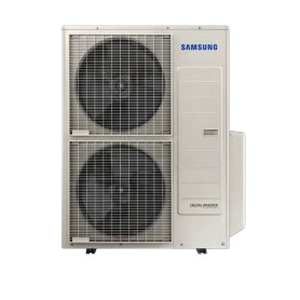

Samsung Standard Heat Pump, FJM Series, 208-230 V, 16.4/17.4 A, 125 W, 60 Hz, 1 ph Phase, 48000 Btu/hr, 3320 cfm, 11.7 EER Rating, 21 SEER, 9 HSPF, 1.2 A Fan Rating, Flared Connection, Inverter Compressor, R-32 Refrigerant, Tonnage: 3.83 ton, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Vent, Ducted or Ductless: Ductless, 55 dBA Sound Level, Steel, Finish: Galvanized/Powder-Coated, 14 to 115 deg F, 47-5/8 in H x 37 in W x 13 in D
- BTU 48K BTU
- Tonnage 3.83 ton
- Number of Ports 5 Ports
- SEER 19 SEER
Instruction/Installation Manual
- Auto-restart after power loss
- Available maximum current setting option to reduce operating current
- System energy consumption can be viewed using the Samsung SmartThings mobile app (not revenue grade, for reference only)
- Soft-start to reduce current demand during compressor start
- The outdoor unit shall supply power individually to the indoor units via 14 AWG X 3 power wire Construction
- The outdoor unit shall be galvanized steel with a baked on powder coated finish for durability Heat Exchanger
- The heat exchanger shall be mechanically bonded fin to copper tube Refrigerant System
- The system shall utilize low-GWP R-32 refrigerant
- Refrigerant flow shall be controlled by electronic expansion valves at the outdoor unit
- The system shall include an R32 alarm output plug on indoor units with refrigerant leak detectors and outdoor unit for notification of R32 leak detection when refrigerant leak detectors are installed and configured (MIM-B14U accessories are required).
