Samsung HVAC continues to deliver on Samsung's legacy of product innovation and engineering excellence to provide the finest variable refrigerant flow (VRF) systems on the market today. From the award winning, revolutionary triangular design of the Pearl wall-mounted indoor unit to the industry leading* efficiency and capacity range of the DVM S system air conditioner, Samsung offers a complete range of single-zone and multi-zone VRF systems to satisfy modern day design and construction challenges while still providing the homeowners and building occupants the highest level of personalized control and comfort.

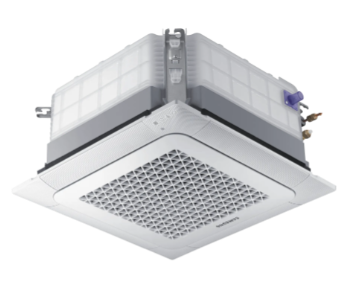

Samsung's Mini 4-Way Cassette's compact size and lightweight body allows it to be installed in a standard 24' ceiling tile
- Tonnage 1.5 Tons
- Compact and lightweight: Samsung's mini 4-way cassette's compact size and lightweight body allows it to be installed in a standard 24 in ceiling tile
- Built-in condensate pump: for added convenience, a condensate pump with a check valve and a maximum lift of 29.5 in is built-in to the unit, check valve prevents drained water from flowing backwards into the drain pan
- Easy-care filter: Electro-static, washable, pleated filters are supplied as standard (included with the fascia panel)
- Surround airflow: the mini 4-way cassette's outlet can cool every portion of your interior
- New and improved design of the blades minimizes blind spots and can almost cover a full 360 deg around the indoor unit
- System protection: the mini 4-way cassette's high-voltage terminal block temperature sensor disables the unit in the event the power connection overheats
- Individual blade control: By using the remote controller, the opening angles of the 4 blades can be individually set at the same or different angles (within a 32 to 65 deg range) for more efficient cooling
- Turbo fan: the indoor fan is a single turbo type with 3 fan speed and auto settings
- Electro-static, washable, pleated filters as standard (included with fascia panel)
- Built in condensate pump and check valve with maximum 29" lift
- Knock-out for outside air capability (with booster fan connection)
- Fascia panel shall have LED indicator lights, IR receiver, and 4 motorized louvers with independent control.
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection.
- The indoor unit shall be powered by the outdoor unit
- Construction: Galvanized steel frame with HIPS chassis and fascia panel certified to UL94 V0.
- Heat Exchanger: The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor Fan: Indoor fan is a single turbo type. Three fan speed settings and auto setting.
- Controls: Control signal shall be a DDC type signal. Interconnect control wire between outdoor and indoor shall be 1 X 2 shielded. Controls shall integrate with a BMS system. The system shall integrate with the Samsung Controls Solution.
- Compatibility: Will only operate with Samsung outdoor unit model numbers: AJ020JCJ2CH/AA, AJ020MCS3CH/AA, AJ024JCJ3CH/AA, AJ024MCS4CH/AA, AJ030MCS4CH/AA, AJ036JCJ5CH/AA.
Standard/Approvals: AHRI Certified;ETL Listed
Application: Residential
