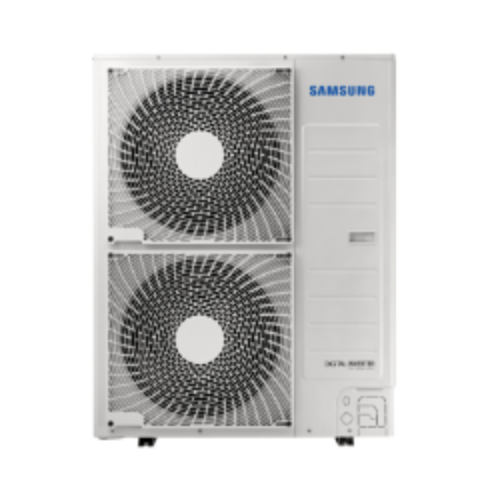

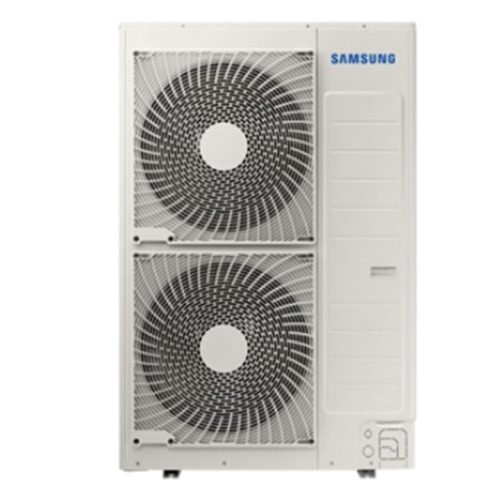

Samsung - Samsung RXX36UMD Heat Pump Split System, 208-230 V, 24 A, 36000 Btu/hr Cooling, 1 ph-Phase, Steel, R-32 Refrigerant
- Item #: AR36DXFUMGMXCV
- Manufacturer: RXX36UMD selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Samsung
- Min. Order Qty: 1
- Qty. Interval: 1
Samsung Heat Pump Split System, 208-230 V, 24 A, 58 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 40000 Btu/hr Heating, 36000 Btu/hr Cooling, 830 cfm Heating CFM Rating, 830 cfm Cooling CFM Rating, 12 EER Rating, 20 SEER, Flared Connection, DC Inverter Twin Rotary Compressor, R-32 Refrigerant, 60 dBA Heating Sound Level, 60 dBA Cooling Sound Level, Steel, Finish: Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, 23 to 122 deg F Cooling Operating Temperature, 13 in Overall Length, 37 in Overall Width, 55-15/16 in Overall Height
- Tonnage 4 Tons
- SEER Rating 20
Catalog.png){kind=link}
- The system shall provide high heating capacity at -4°F (-20°C) with heating operation down to -13°F (-25°C)
- The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage
- The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app
- Outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable
- Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability
- The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket
- All heat exchangers shall be mechanically boded aluminum fin to copper tube
- The system shall utilize low-GWP R-32 refrigerant
- Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
- Three fan speed settings and auto settings
- Automatic (motorized) vertical swing (up/down) louver
