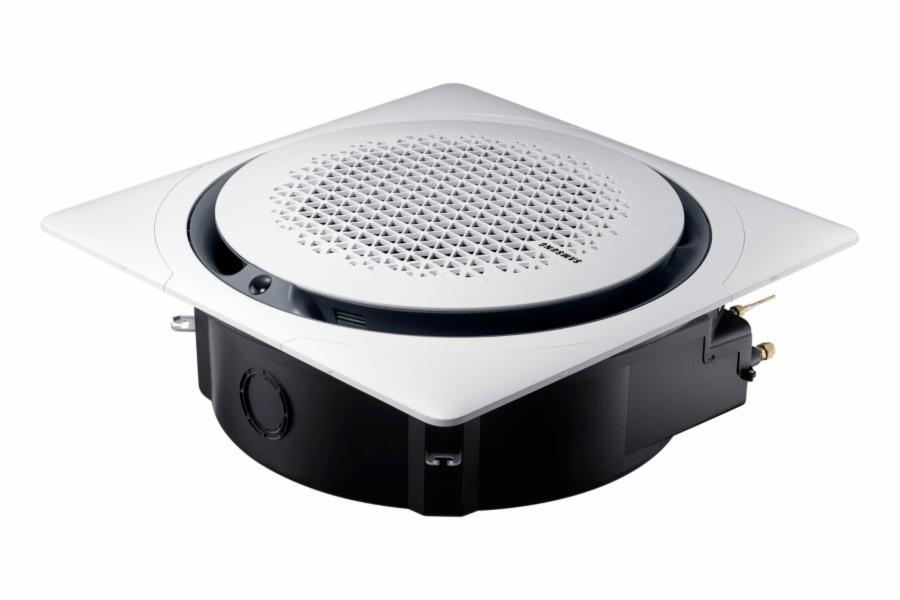

Samsung - 18K BTU, DVMs 360 Cassette, DVMs Single Zone Air Handler

• Evenly circulates & cools every corner: Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature
• Comfortable cool, not unpleasantly cold: A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft. With no blades to block the air flow, it also expels 25% more air and spreads it farther.
• Circular to perfectly fit in everywhere: Its innovative circular design can match a multitude of interior designs, so it perfectly fits in everywhere. Its minimalist modern styling creates a sophisticated look and its circular shape stands out beautifully.
• The indoor unit shall be compatible with Samsung DVM S and DVM Eco systems (AM****X*****AA).
• The indoor unit shall be a round ceiling cassette with 360°, even air distribution
• Auto-restart after power loss
• The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data
• All indoor unit addressing and option settings shall be done digitally; the indoor unit does not contain rotary dials or setting switches.
• Electro-static, washable, pleated filter as standard (included with fascia panel).
• Built in condensate pump and check valve with maximum 29" lift
• Knock-out for outside air capability (with booster fan connection)
• Fascia panel shall have LED indicator lights and an infrared receiver
• The indoor unit shall have two (2) fascia panel types: 1. Ceiling Type for installation applications where a ceiling textile is present (ex. tile ceiling, gypsum). The Ceiling Type fascia panel shall be square in shape. 2. Open Type for installation applications where a ceiling textile is not present (ex. open ceiling). The Open Type fascia panel shall be circular in shape.
• The indoor unit shall not have air louvers or blades allowing full airflow without restriction. Air direction control shall be achieved by creating a low pressure area near air outlet causing discharge air to change direction angle.
• Fixed or auto-swing air direction shall be possible with wireless, touch, or premium wired controller (10° ~ 60° angle)
• Independent air distribution control shall be possible with wireless or premium wired controller (three directions, 10° ~ 60° angle)
• Construction: The indoor unit shall be have a galvanized steel frame with HIPS chassis and fascia panel certified to UL94 V0.
• Heat Exchanger: The indoor unit heat exchanger shall be mechanically bonded aluminum fin to copper tube
• Controls: Control signal shall be a DDC type signal. The unit shall integrate with the Samsung NASA Controls Network Solution. Controls shall integrate with a BMS system. Control wiring shall be 2 X 16 AWG shielded wire. The indoor unit shall have a 12VDC output that is interlocked with fan to activate external devices (fan ON = 12VDC ON, fan OFF = 12VDC OFF, pigtail adapter plug required). Wired or wireless controls must be purchased separately.

Standard/Approvals: cETLus Listed

Application: Residential
