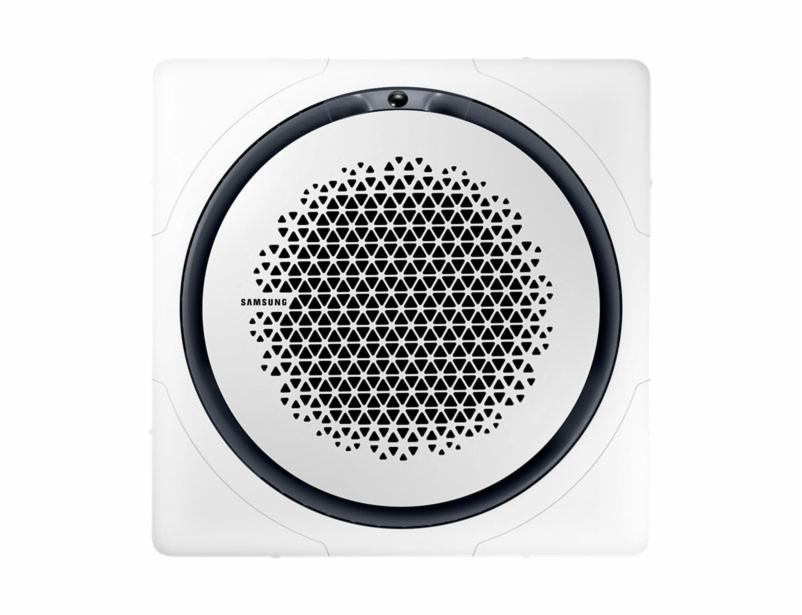

DVMS 12k 360 Cassette AHU, White, 50 ft Maximum Piping Length, 28.1 SEER Rating, 15.8 EER Rating, 2700 to 20800 Btu/hr Heating Capacity, 3100 to 13000 Btu/hr Cooling Capacity, 15 A Fuse Size, 1/4 in Discharge Line Size, 3/8 in Suction Line Size, R-410A Refrigerant Type, 208 to 230 VAC 60 Hz 1 ph, 34-5/8 in W x 25-1/8 in H x 12-3/16 in D, Split System, Galvanized Steel
- Dimensions 37-1/4 in W x 11-1/16 in H x 37-1/4 in D
- Flow Rate 495 (Low);530 (Medium);565 (High)
- Number of Phase 1 Ph
- Sound Level 29 dB (Low);31 dB (Medium);33 dB (High)
- Tonnage 1 Ton
- Voltage Rating 208 to 230 VAC
- The indoor unit shall be compatible with Samsung DVM S and DVM Eco systems
- The indoor unit shall be a round ceiling cassette with 360°, even air distribution
- Auto-restart after power loss
- The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data
- All indoor unit addressing and option settings shall be done digitally;the indoor unit does not contain rotary dials or setting switches
- Electro-static, washable, pleated filter as standard (included with fascia panel)
- Built in condensate pump and check valve with maximum 29" lift
- Knock-out for outside air capability (with booster fan connection)
- Fascia panel shall have LED indicator lights and an infrared receiver
- The indoor unit shall not have air louvers or blades allowing full airflow without restriction. Air direction control shall be achieved by creating a low pressure area near air outlet causing discharge air to change direction angle
- Fixed or auto-swing air direction shall be possible with wireless, touch, or premium wired controller (10° ~ 60° angle)
- Independent air distribution control shall be possible with wireless or premium wired controller (three directions, 10° ~ 60° angle)
Standard/Approvals: cETLus Listed
Application: Residential
