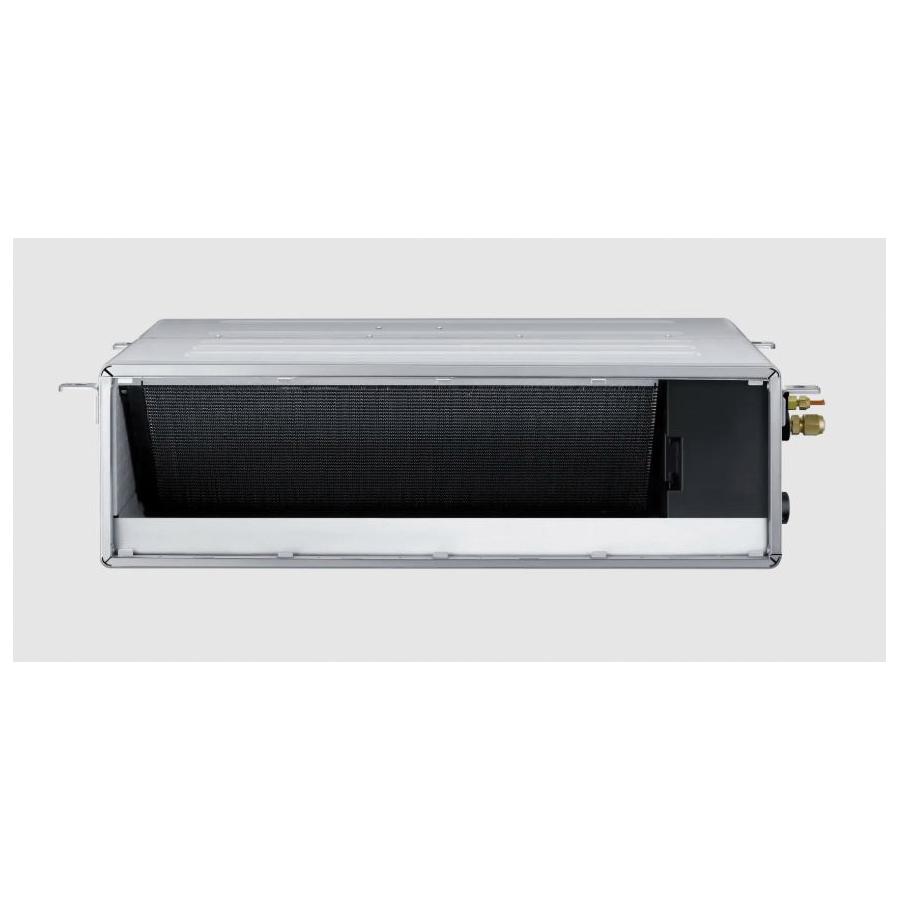

Samsung AM012ANMDCH/AA AM012ANMDCH/AA

Samsung - Samsung DVM S Series AM012ANMDCH/AA MSP Ducted Unit, 208 - 230 V, 0.3 A, 12000 Btu/hr Cooling, 13500 Btu/hr Heating BTU

  • Item #: AM012ANMDCH/AA
  • Manufacturer: AM012ANMDCH/AA
  • Brand Name: Samsung
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
loading
Add to cart
Add To Favorite
Send Print

Samsung MSP Ducted Unit, Series: DVM S Series, 208 - 230 V, 0.3 A, 39 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 12000 Btu/hr Cooling, 13500 Btu/hr Heating, 424 cfm, Flared Connection, R-410A Refrigerant, Tonnage: 1 ton, 29 dBA, 27 dBA, 25 dBA Sound Level, Steel, Finish: Galvanized, 27-9/16 in Overall Length, 33-7/16 in Overall Width, 9-13/16 in Overall Height, For Use With: Samsung DVM S Water and DVM Eco Systems, Additional Information: 2021 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode

  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM006ANMDCHAA_Instruction_Installation_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM006ANMDCHAA_Owners_User_Manual.pdf
  • pdfService Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM006ANMDCHAA_Service_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM006ANMDCHAA_Specification_Sheet.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AM012ANMDCHAA_Submittal.pdf
  • Horizontal discharge airflow
  • The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data
  • All indoor unit addressing and option settings shall be done digitally; the indoor unit does not contain rotary dials or setting switches
  • The indoor unit shall have static pressure scanning for simple setup and optimized comfort settings for the occupant
  • The indoor unit shall have smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve with a wired remote controller (MWR-SH10N, MWR-SH11UN, MWR-WE13*N, MWR-WG00*N) to increase or decrease airflow
  • The indoor unit shall allow service access from four sides (top, bottom, left, right)
  • The indoor unit shall have an internal condensate pump as standard with float switch (maximum 29" lift from bottom of unit)
  • High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
  • Discharge air temperature sensor with target discharge temperature control capability
  • The heat exchanger shall be mechanically bonded fin to copper tube
  • Indoor fan is a centrifugal type with a single fan motor
  • Fan output can be configured during commissioning for various external static pressure ranges
