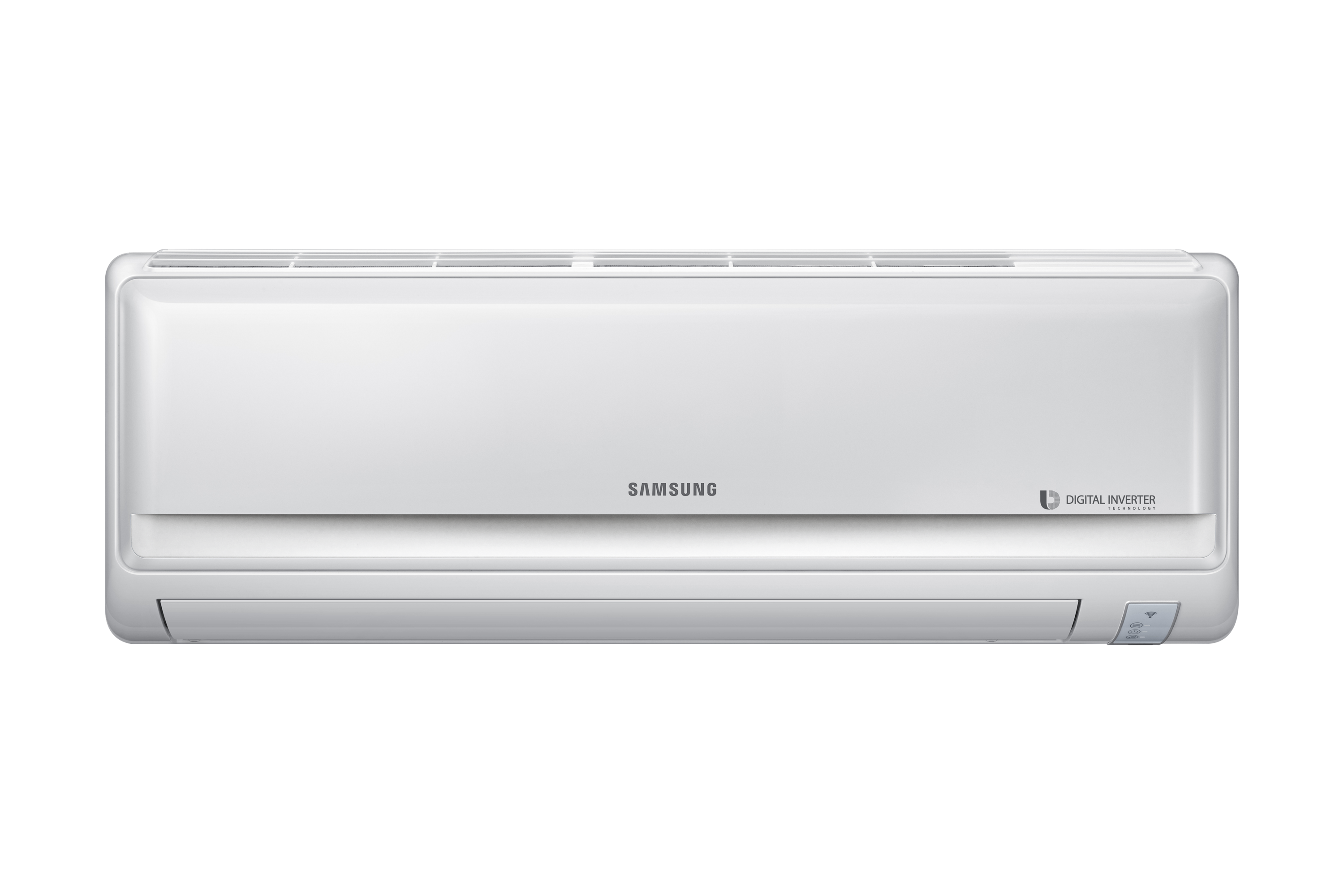

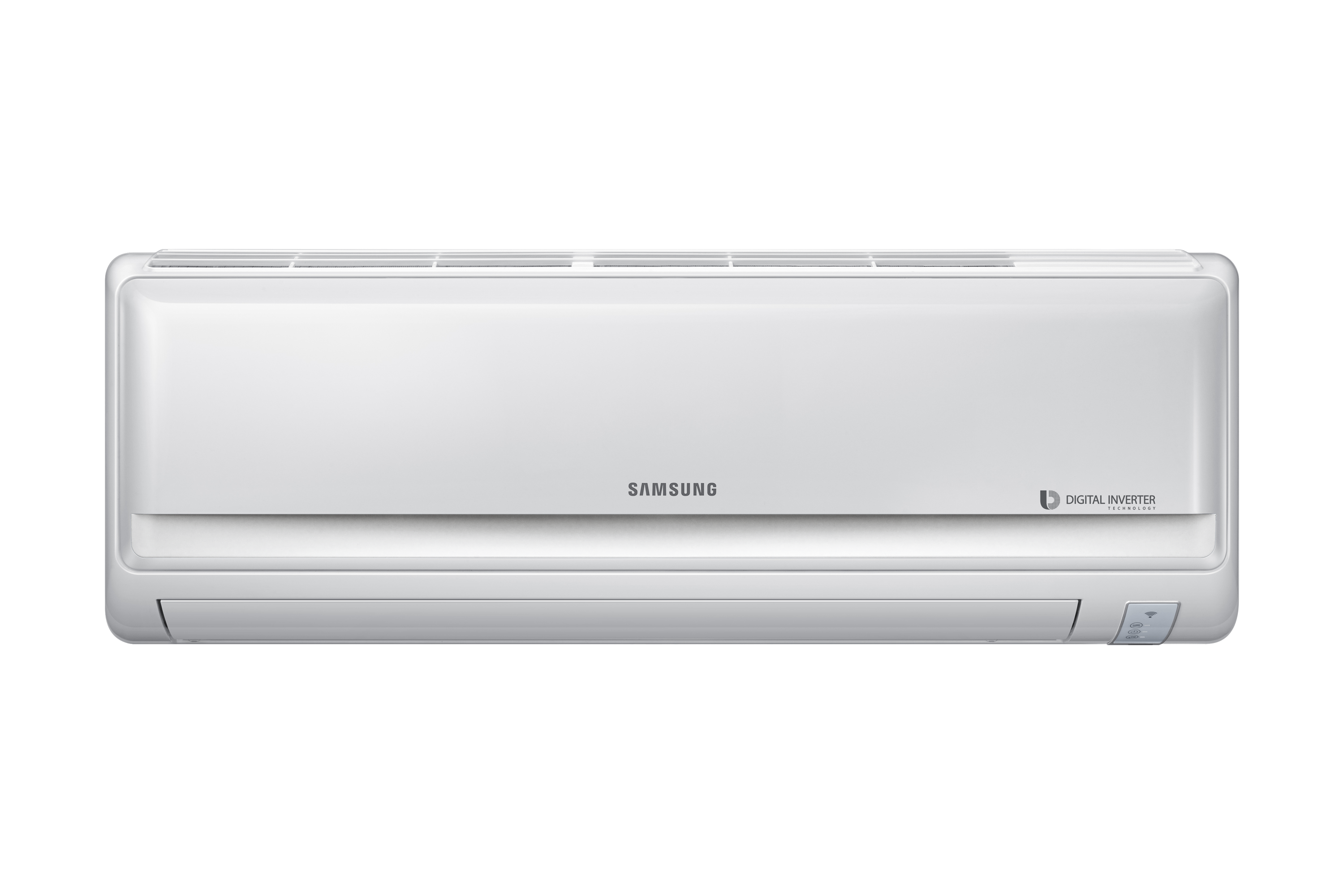

Samsung - Samsung AC030DNTDCG/AA Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, Plastic
- Item #: AC030DNTDCG
- Manufacturer: AC030DNTDCG/AA selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Samsung
- Min. Order Qty: 1
- Qty. Interval: 1
Samsung Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, 8.7 kW, 60 Hz, 1 ph, 3 Fan Speeds, 30000 Btu/hr Cooling, 32000 Btu/hr Heating, 671 to 777 cfm, 12.5 EER Rating, 21 SEER, 9.5 HSPF, Flared Connection, 40 A Fuse Rating, Inverter Drive, 49 dBA Sound Level, Wall Mounting, Plastic, 64 to 90 deg F Cooling, <=86 deg F Heating, 50-3/8 in Overall Length, 13-5/8 in Overall Width, 10 in Overall Height, Brushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type, 3/8 in Liquid Line, 5/8 in Suction Line
- Sound Level 49 dBA
- Voltage Rating 208-230 V
Catalog
- The system shall provide high heating capacity at -4 deg F (-20 deg C) with heating operation down to -13 deg F (-25 deg C)
- The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app
- The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket
- All heat exchangers shall be mechanically boded aluminum fin to copper tube
- The system shall utilize low-GWP R-32 refrigerant
- Three fan speed settings and auto settings
- Automatic (motorized) vertical swing (up/down) louver
- Control wiring shall be 2 X 16 AWG
- The unit shall be operated via a wireless or wired remote control with DDC-type signal (purchased separately)
- Dual set temperature support when connected to supported controllers
- No additional interface modules/adapters are required when connecting to Samsung central control options
- Wired or wireless controllers must be purchased separately
- External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required)
- External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required)
- Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required)
- External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat
- Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating
- 7-segment digital display on the front of the unit to display temperature and unit status
- Washable main filter as standard accessible from the top of the unit
- Night-time Quiet Mode: reduction of operational sound during evening hours (automatic or manual activation)
