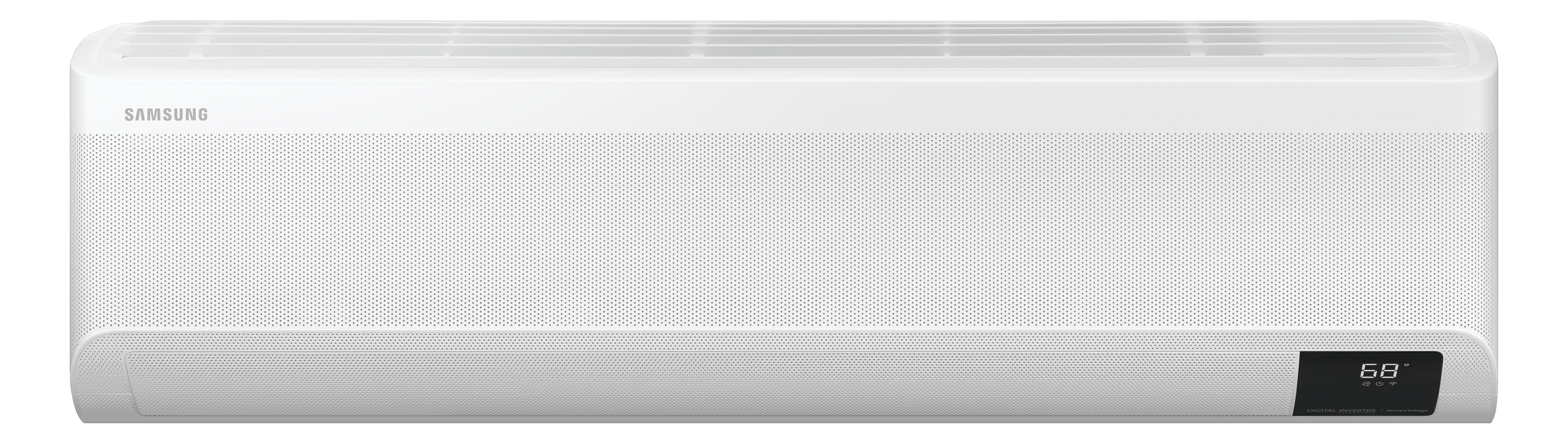

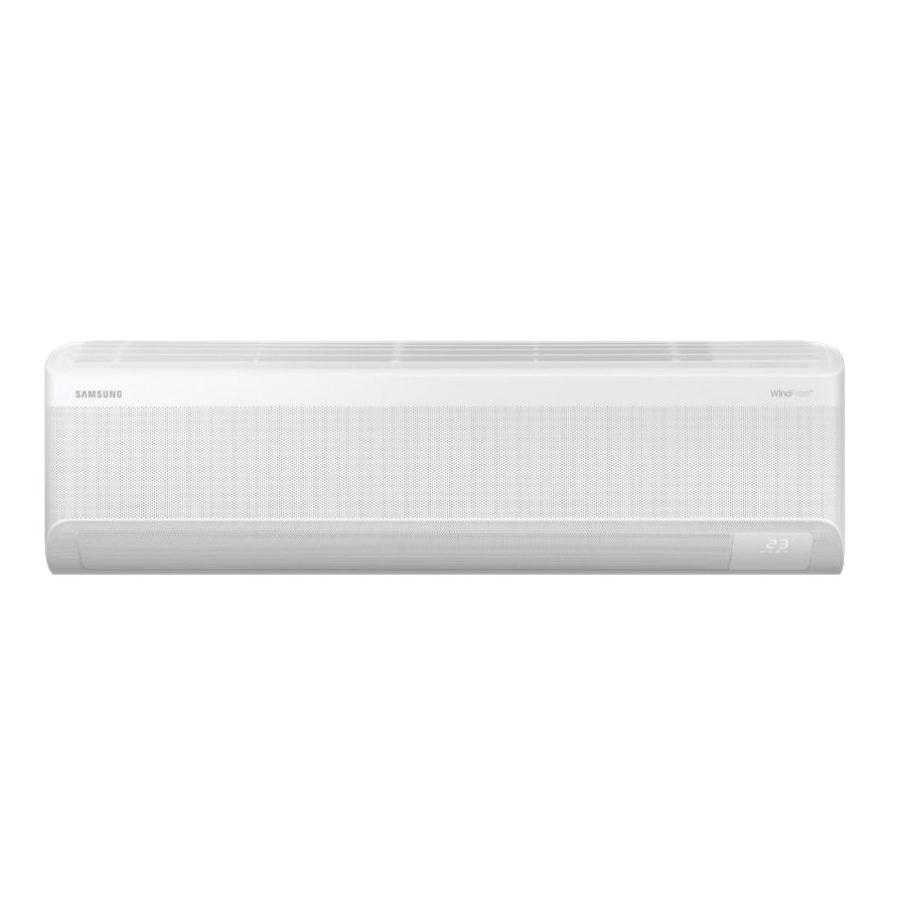

Samsung - Samsung WindFree™ AC018DNADCG/AA Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 9.7 A Cooling, 12.9 A Heating
- Item #: AC018DNADCG
- Manufacturer: AC018DNADCG/AA selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Samsung
- Min. Order Qty: 1
- Qty. Interval: 1
Samsung Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 9.7 A Cooling, 12.9 A Heating, 5.2 kW, 60 Hz, 1 ph, 3 Fan Speeds, 18000 Btu/hr Cooling, 20000 Btu/hr Heating, 441 to 615 cfm, 12.2 EER Rating, 20.5 SEER, 9.5 HSPF, Flared Connection, 25 A Fuse Rating, Inverter Drive, 42 dBA Sound Level, Wall Mounting, Plastic, 64 to 90 deg F Cooling, <=86 deg F Heating, 41-1/2 in Overall Length, 11-13/16 in Overall Width, 8-1/2 in Overall Height, Brushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type, 1/4 in Liquid Line, 1/2 in Suction Line
- Sound Level 42 dBA
- Voltage Rating 208-230 V
Catalog
- The system shall provide high heating capacity at -4 deg F (-20 deg C) with heating operation down to -13 deg F (-25 deg C)
- The indoor unit shall feature WindFree™* mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants
- The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app
- The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket
- All heat exchangers shall be mechanically boded aluminum fin to copper tube
- The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service
- The system shall utilize low-GWP R-32 refrigerant
- Three fan speed settings and auto settings
- Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers
- Control wiring shall be 2 X 16 AWG
- The unit shall be operated via a wireless or wired remote control with DDC-type signal (purchased separately)
- Dual set temperature support when connected to supported controllers
- No additional interface modules/adapters are required when connecting to Samsung central control options
- Wired or wireless controllers must be purchased separately
- External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required)
- External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required)
- Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required)
- External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat
- Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating
- 7-segment digital display on the front of the unit to display temperature and unit status
