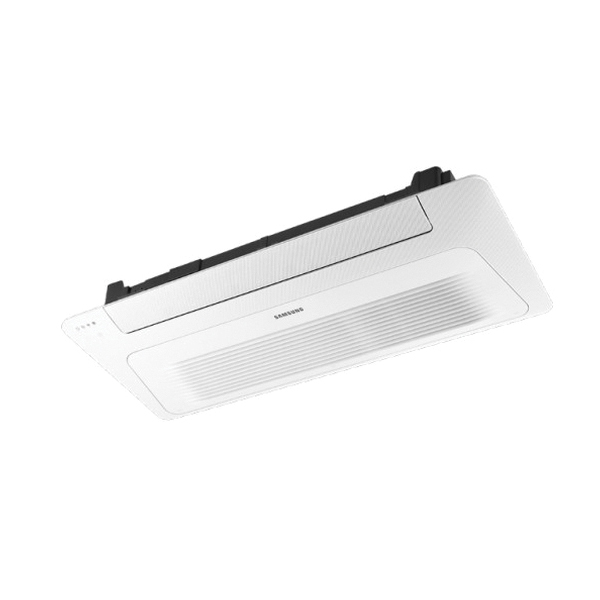

Samsung AC018DN1DCG/AA AC018DN1DCG

Samsung - Samsung AC018DN1DCG/AA Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 11.3 A, 1 ph, Steel

  • Item #: AC018DN1DCG
  • Manufacturer: AC018DN1DCG/AA
  • Brand Name: Samsung
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
loading
Add to cart
Add To Favorite
Send Print

Samsung Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 11.3 A, 65 W, 60 Hz, 1 ph, 3 Fan Speeds, 17500 Btu/hr Cooling, 20000 Btu/hr Heating, 590 cfm, 12 EER Rating, 20 SEER, 9.5 HSPF, 1 x 1-1/4 in Connection, R-32 Refrigerant, 43 dBA Sound Level, Steel, Finish: Galvanized/Powder-Coated, 64 to 90 deg F, 17-11/16 in Overall Length, 47-3/16 in Overall Width, 5-3/8 in Overall Height

  • Sound Level 43 dBA
  • Voltage Rating 208 to 230 V
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AC009DN1DCG_AA_Instruction_Installation_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AC009DN1DCG_AA_Owners_User_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Samsung_AC018DN1DCG_AA_Submittal.pdf
  • The system shall provide high heating capacity at -4degF (-20degC) with heating operation down to -13degF (-25degC).
  • The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage.
  • The indoor unit shall feature WindFree™* mode. When activated in cooling mode, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit, preventing cold air drafts on occupants.
  • The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort.
  • The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow.
  • The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app.
  • Auto-restart after power loss
  • Soft-start compressor minimizing inrush current
  • The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable.
  • Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability.
  • Indoor unit: Insulated, HIPS chassis and fascia panel certified to UL94 V0.
  • All heat exchangers shall be mechanically boded aluminum fin to copper tube.
  • The system shall utilize low-GWP R-32 refrigerant
  • Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit.
  • Three fan speed settings and auto settings
  • Washable filter as standard
  • Fascia panel shall have LED display, infrared receiver, and a motorized louver
  • The WindFree™* function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants.
  • The WindFree™* feature is optional and can be enabled using central or local control options.
  • Control wiring shall be 2 X 16 AWG.
