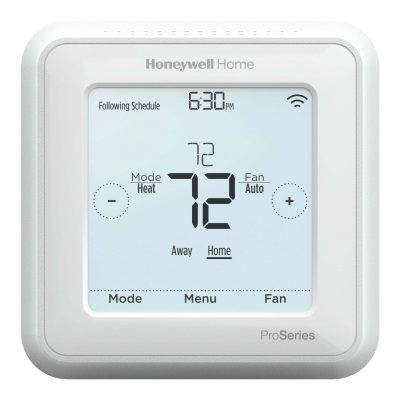

T6 Pro Programmable Thermostat designed to work with any Z-Wave compliant controller or gateway; however, a security enabled Z-Wave Plus Controller is recommended to fully utilize all thermostat features. Works with Heat Pump or Conventional systems and has dual fuel and aux heat lockout with outdoor sensor.
resideo T6 Pro Z-Wave™ Programmable Thermostat With SmartStart, T Series, 20-30 V, 50/60 Hz Frequency, Programmability: 7 Day, No Programming, Battery, Hardwired Power Source, 3 Heat, 2 Cool Heat Pump + Dual Fuel, 2 Heat, 2 Cool Stages, Relay Switch, 6.89 sq-in Touchscreen Backlight LED Display, 1 deg F Differential, 40 to 90 deg F Settings, 37 to 102 deg F, 0 to 90 % Humidity, 1 deg F Accuracy, Wallplate Mounting, Terminal Designation: RC, R, C, W, W2 to AUX, Y, Y2, O/B, G, K, E, L/A, S, S, Electrical Connection: UWP Mounting System, Fan Current: 0.02 to 5 A, White, Dimensions: 4-1/16 in L x 4-1/16 in W x 1-3/32 in D
- Color White
- Programmability 7 Day, No Programming
- Stages 3 Heat/2Cool
- Voltage Rating 20-30 V
Instruction/Installation Manual
- Up to 3H/2C Heat Pump systems or up to 2H/2C Conventional systems
- Z-Wave Plus certified with improvement in range, battery life, and bandwidth
- Backwards compatibility
- Selectable ranges stops
- Keypad lockout
- DST Enabled
- Time based 7-day, 5-1-1 or 5-2 day programmable, non-programmable, or occupancy controlled with Z-wave panel/app integration
- 5 Year Warranty
