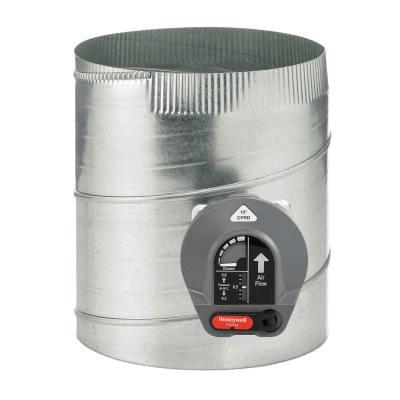

The TrueZONE® Bypass constant pressure regulating damper (CPRD) is a round static pressure relief damper. It is used in forced-air bypass applications to relieve excess static pressure when some of the zone dampers are closed.
resideo Bypass Damper, 10 in Diameter, 24 V, 60 Hz, VA Rating: 8 VA, 1000 cfm, 26 ga Gauge, Steel, Finish: Galvanized, Round Shape, 0 to 165 deg F
- Type TrueZONE Bypass Damper
- Series CPRD
- Voltage Rating 24 V
- Size 10
- Shape Round
- Finish Galvanized
- Rotation Angle 90
- Motor Type Calibrated Spring Tension Regulator
- Temperature Rating 0 to 165 deg F
- Material Steel
User Manual
- Quick installation and setup
- No weight to adjust
- Can be installed in any orientation
- Engineered to provide constant system pressure regardless of changes in zones celling or blower speed
