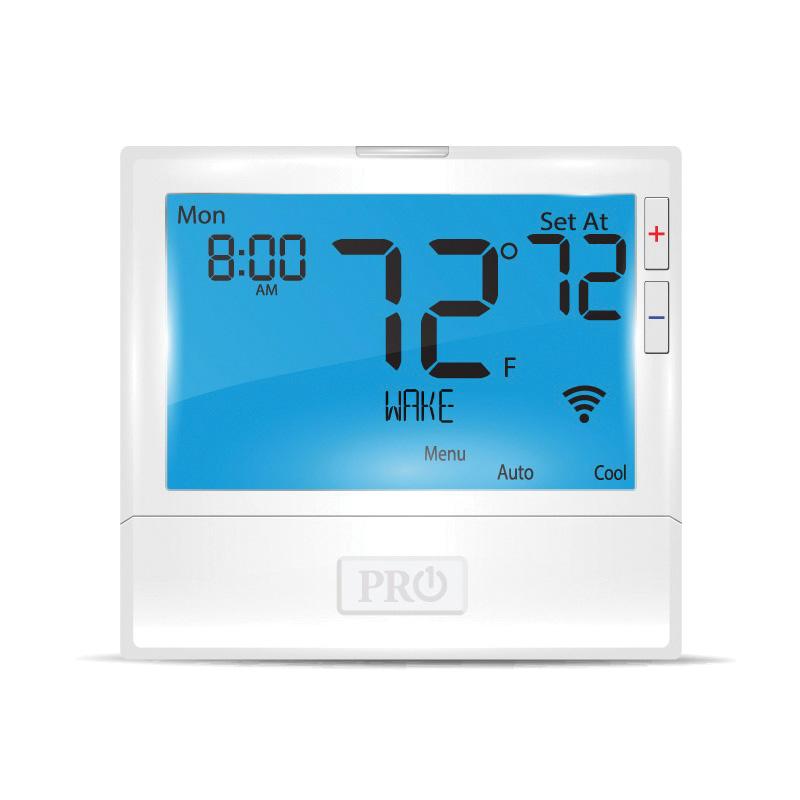

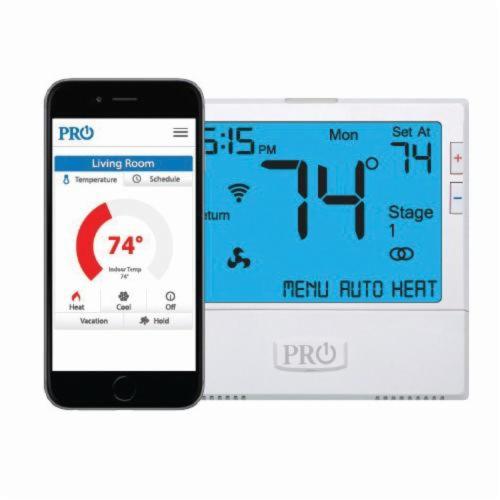

PRO1® Universal Wi-Fi Thermostat, 18-30 VAC, 1/1.5 A, 90% RH Non-Condensing Humidity Rating, +/-1 deg F Accuracy, 50/60 Hz, 44 to 90 deg F Temperature Settings, 8 Stages, Junction Box, Wall Mounting, 7-day Programmable Programmability, 41 to 95 deg F, 32 to 105 deg F, 4.4 in H x 4.7 in W x 1.1 in D
- Color 8
- Programmability 7-day Programmable
- Stages Cool 2
- Stages Heat 4
- Stages 8
Catalog
- 7 days or non-programmable
- Auto changeover
- Easy menu driven programming
- Intuitive wake, leave, return, sleep programming icons
- 8 sq-in display
- Blue backlight
- Glow in the dark light button
- Programmable fan
- Electric or gas configurable
- Room temperature calibration adjustments
- Separate heating and cooling swing (cycle rate) adjustments
- Keypad lockout
- Heating and cooling setpoint limits
- 5 mins compressor delay protection (selectable on or off)
- Filter change indicator(selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- 24 V power
- Up to 2 heat 2 cool conventional, up to 5 heat 3 cool heat pump, hardwire only
