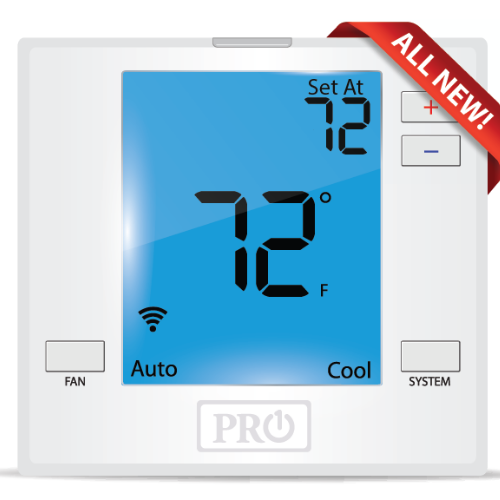

Pro1® - T755 Universal Multi-Stage Thermostat (2H/2C, 3H/2C)

  • Item #: T755
  • Manufacturer: T755
  • Brand Name: Pro1®
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
loading

Features:

  • Universal
  • Up to 2 heat 2 cool conventional
  • Up to 3 heat 2 cool heat pump
  • Battery or Hardwire
  • 5/1/1 or non-programmable
  • 5/1/1 programmable
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 6 sq. inch display
  • Blue backlight
  • Glow in the dark light button
  • Easy access battery compartment
  • Electric or Gas configurable
  • Separate heating and cooling swing (cycle rate) adjustments
  • Filter change indicator (selectable on or off)
  • Room temperature calibration adjustment
  • 5 minute compressor delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 5 year warranty

  • pdfData/Spec Sheet https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pro1_T725_Specification_Sheet_1.pdf
  • pdfInstruction/Installation Sheet https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pro1_T855_Installation_Sheet.pdf
  • 7 day or 5/1/1 programmable
  • Auto change over easy menu driven programming, intuitive wake, leave, return, sleep programming icons, 8 sq-inch display, blue backlight
  • Glow in the dark light button, programmable fan, electric or gas configurable, room temperature calibration adjustments, separate heating and cooling swing (cycle rate) adjustments
  • Keypad lockout, heating and cooling setpoint limits, 5 minute compressor delay protection (selectable on or off), filter change indicator(selectable on or off)
  • Simple private label badge system, easy wire color coded terminal blocks, universal sub-base, mounts on wall or junction box
  • Mounts on wall or junction box
  • 32 to 105 deg F ambient operating temperature
  • Temperature ranges 41 to 95 deg F display range of temperature, 44 to 90 deg F control range of temperature
  • Humidity range - operating 90 percentage, non-condensing maximum
  • +/- 1 deg F display accuracy, 1 A terminal, 1.5 a maximum all terminals combined load rating
  • 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire), battery power from 2 AA alkaline energizer batteries
