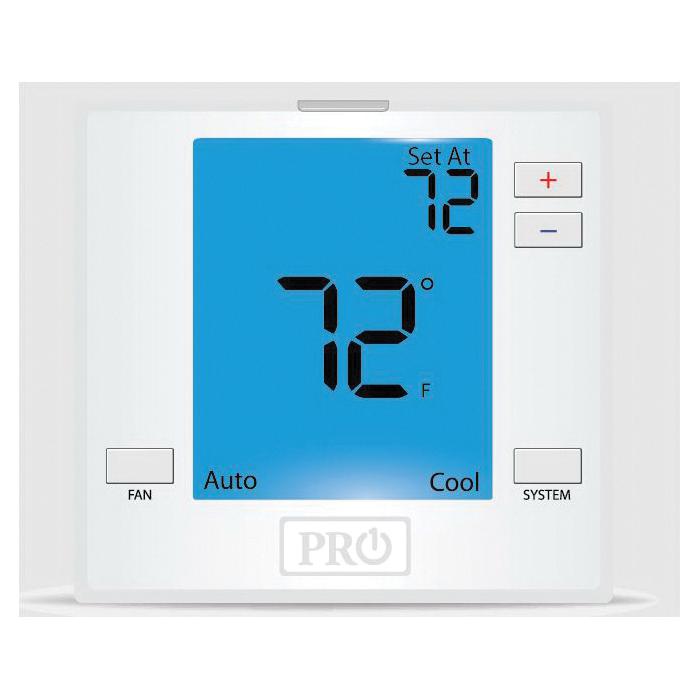

PRO1® Universal Non-Programmable Thermostat, 18 to 30 VAC, 50/60 Hz Frequency, 32 to 105 deg F, 90 % Humidity, Alkaline Battery, +/-1 deg F Accuracy, Wall Mounting, Dimensions: 4.4 in H x 4.7 in W x 1.1 in D, Additional Information: NEC Class II, 2 AA Batteries, 1 amp per terminal, 1.5 A Maximum all Terminals Combined Load
- Color White
- Stages Cool 2
- Stages Heat 3
- Stages 3 Heat/2Cool
- Voltage Rating 18 to 30 VAC
Data/Spec Sheet
- 7 sq-in display
- Improved blue back light
- Glow in the dark light button
- 5 min compressor delay protection (selectable on or off)
- Adjustable setpoint limits
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- Simple private label badge system
- Easy wire color-coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24 V power
