Mars® - Mars® 20478 PSC AC Motor, TEAO Enclosure, 1/3 to 1/6 hp, 460 V, 60 Hz, 1 Phase , 48 Frame, 1075 rpm Speed, Band/Hole/Stud Mount
- Item #: 20478
- Manufacturer: 20478 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Mars®
- Min. Order Qty: 1
- Qty. Interval: 1

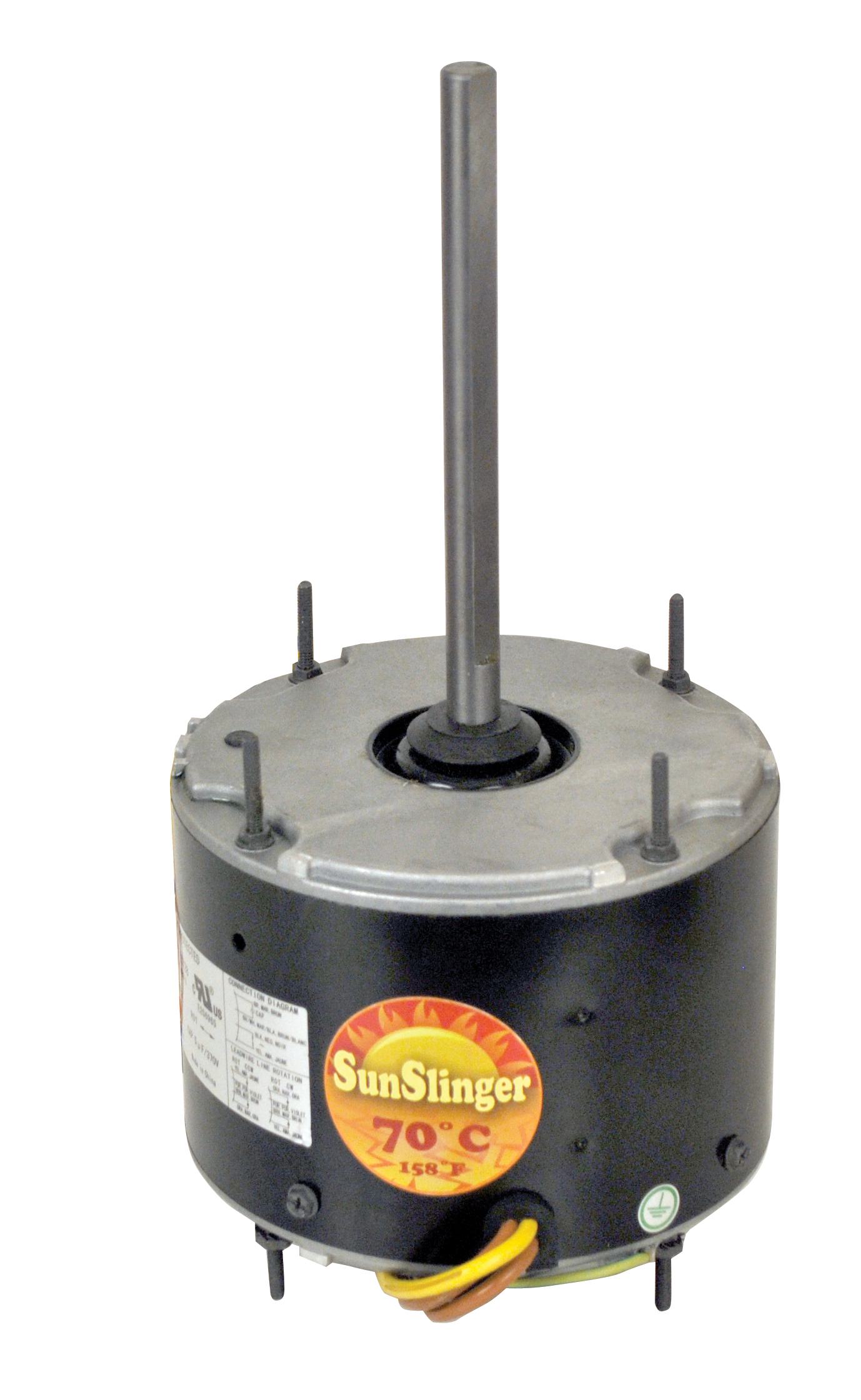

Mars®, 20478, AC Motor, PSC, Condenser Fan Application, 1/3 to 1/6 hp, 460 V, 1.0 to 0.65 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TEAO Enclosure, 48 Frame, 1/2 in Dia x 6.5 in L Shaft, CW/CCW Rotation, 1 Service Factor, Ball Bearing, Band/Hole/Stud Mounting, 70 deg C
- Voltage 460
- Service Factor 1
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MARS_20478_Catalog.pdf- Ball Bearing, Single Phase
- Multi-HP, Reversible
- Trane 4.33 bolt circle mtg holes with self tap screws
- Rheem Mounting Holes with Screws Installed
- Thru Bolt or Band Mounting
- Water Slinger on shaft
