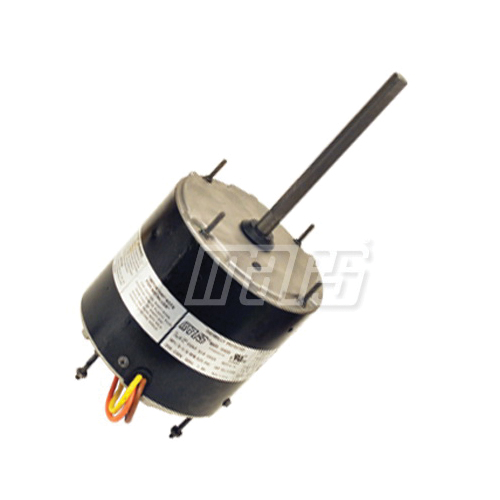

Mars® - Mars® 10459 Condenser Fan Motor, DP Enclosure, 1/3 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 825 rpm Speed, All Angle Mount
- Item #: 10459
- Manufacturer: 10459 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Mars®
- Min. Order Qty: 1
- Qty. Interval: 1
Mars® multi-horsepower condenser fan motors are ideal for truck stock. Three 1075 RPM models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 or 1/3 HP.
Mars® Condenser Fan Motor, Condenser Fan Motors Application, 1/3 hp, 208 to 230 VAC, 1.9 A Full Load, 60 Hz Frequency, 1 ph, 825 rpm Speed, 1 Speed, DP Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, Ball Bearing, All Angle Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Motor HP 1/5 - 1/3 HP
- Voltage 208 to 230V
- Motor RPM 825 RPM
Catalog- Rheem® mounting holes with screws installed
- Thru-bolt or band mounting
- Water slinger on shaft
- Air conditioning or heat pump duty
- Automatic thermal overload protected
- Capacitor not included
- 10 uF at 370 VAC capacitor required
