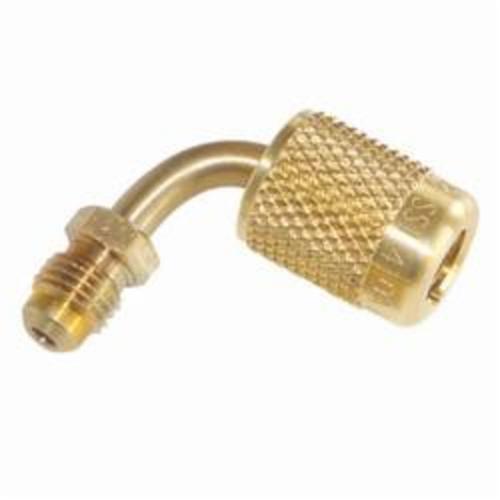

JB Industries - Access Valve, Quick Coupler Shutoff, 1/4 in

  • Item #: 33113N
  • Manufacturer: 33113N
  • Brand Name: JB Industries
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

JB manufactures our quick couplers at the facility in Aurora, Illinois. 1/4" couplers have a valve core depressor, safety channels and rubber gasket seal. JB machines all of the access valves using the highest level of brass consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content, resulting in higher failure rates. JB machines all of our valves to the strict guidelines of the ARI to ensure proper sealing of the valve and core surfaces. Our access fittings have generous counter bores to allow for the removal of the core if the flare becomes damaged.

JB Industries Refrigerant Shut-Off Quick Coupler, 1/4 in Nominal Size, QC x SAE, For Use With: All Including R-410A Refrigerants, Brass, Domestic

  • Nominal Size 1/4 in
  • End Style QC x SAE
  • Suitable For Use With All Including R-410A Refrigerants
  • Material Brass
  • Domestic/Import Domestic
  • Warranty 2 Years
  • pdfCatalog-1 https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/JB_Industries_A31656_Catalog.pdf
  • All tees and crosses are tapped to receive an access core in all 1/4 in SAE flare ends
  • All pipe connections have internal braze cups for dip tube applications
  • Immediately traps refrigerant discharge from hose when disconnecting from access fitting
  • Valve core is stainless steel and brass for use with all refrigerants including R-410A
  • Resistant to oils, alkylites and diluted mineral acids
  • All valves are equipped with cap and one valve core (braze type, loosely assembled)
