Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 VAC, gas fired appliances, with capacities from 20 - 200 cfh or 30 - 415 cfh.

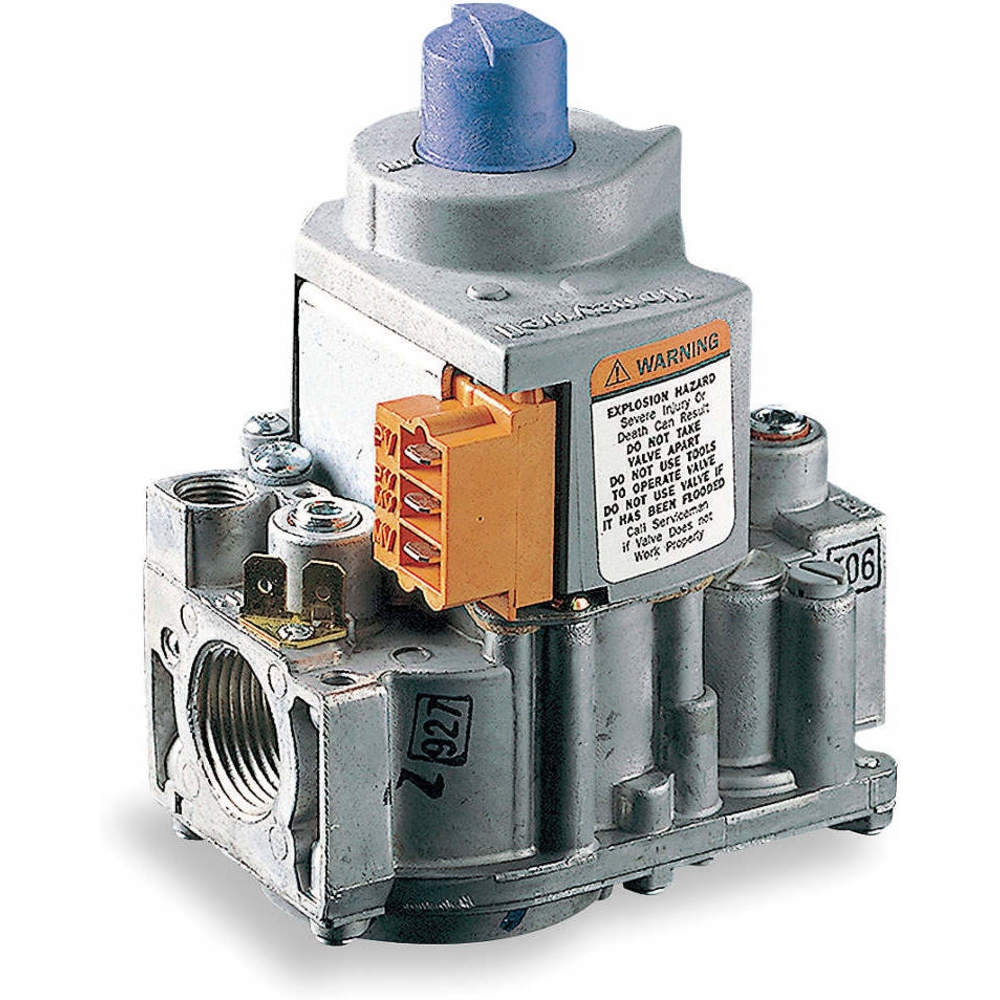

Honeywell Gas Valve, 3/4 in Nominal, NPT Connection, 3.5 in-WC Pressure, 1 Stage, Direct Spark, Hot Surface, Intermittent Pilot Ignition, 0.7 A, 24 VAC, 300000 Btu/hr Nominal, LP Gas, Natural Gas Fuel, -40 to 175 deg F Ambient, Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
- Nominal Size 3/4 in
- Pressure Rating 3.5 in-WC
- Temperature Rating -40 to 175 deg F Ambient
- Dimensions 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
- Replaces many IP, HSI or DSI gas control
- For use with natural or manufactured gas or LP gas
- Compact size
- All adjustments and wiring connections are accessible from top of control
- 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
- Internal inlet screen blocks contaminants in gas line from entering valve
- Two 3/4 x 1/2 in and one 1/2 x 3/8 in reducer bushings, natural to LPG conversion kit included
