The Glasfloss PTA shall be constructed of a single piece of heavy-duty, one piece craftboard frame. The metal grid shall be thermally bonded internally to the frame. The metal grids shall provide an 82 percent open area. All corners shall be closed and sealed. The filter media shall be constructed in a progressively dense fashion from air entertaining to air-leaving side. Glasfloss disposable panel filters shall be rated to withstand temperatures up to 180 degrees Fahrenheit. All filters shall be classified under U.L. std. 900.

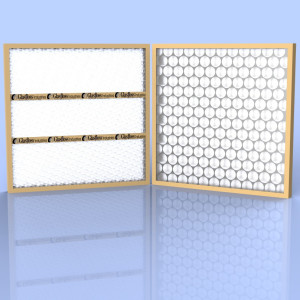

Glasfloss® Disposable Panel Filter, Series: PTA, 20 in Width, 1 in Depth, 20 in Height, MERV: 1 to 5, 300 fpm, 180 deg F, Craftboard Frame, 3 to 10 micron, <20% Efficiency, 0.09 in WG Initial Resistance, 0.5 in WG Final Resistance, PolyStrand Media, 19-5/8 in H x 19-5/8 in W x 3/4 in D, Domestic
- Series PTA
- Width 20 in
- Depth 1 in
- Height 20 in
- MERV 1 to 5
- Temperature Rating 180 deg F
- Frame Material Craftboard
- Filter Rating 3 to 10 micron
- Efficiency <20%
- Initial Resistance 0.09 in WG
- Progressively dense heavy duty media
- Heavy duty one piece box frame construction
- Thermally bonded
- The glasfloss PTA series disposable panel filter has set the standard for quality and durability
- This rigidly constructed air filter maintains its integrity where others fall short
- Always the highest quality, glasfloss disposable panel filter have metals grids on both the air entry and air leaving sides
- Heavy duty media, heavy duty media, metals grids on both sides
