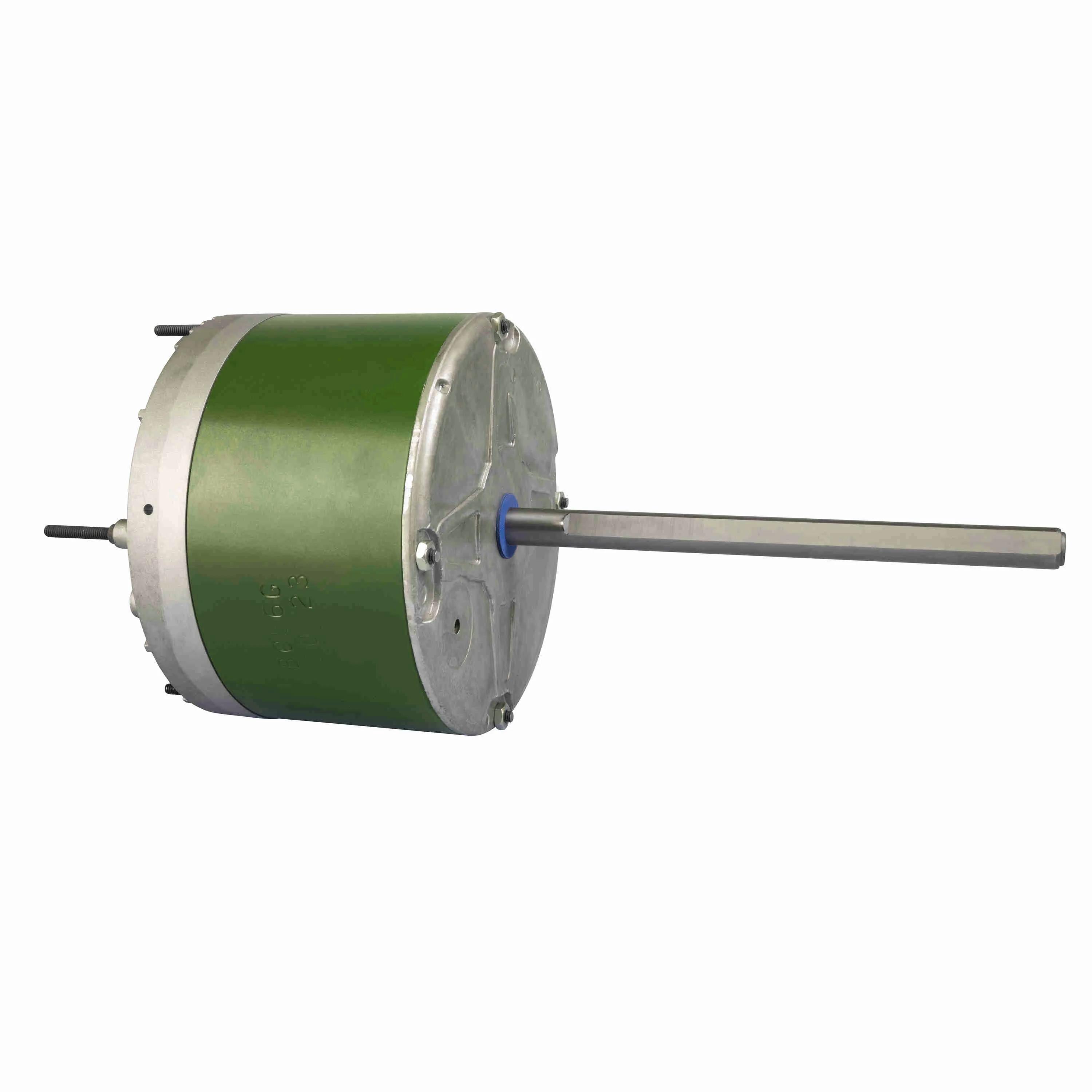

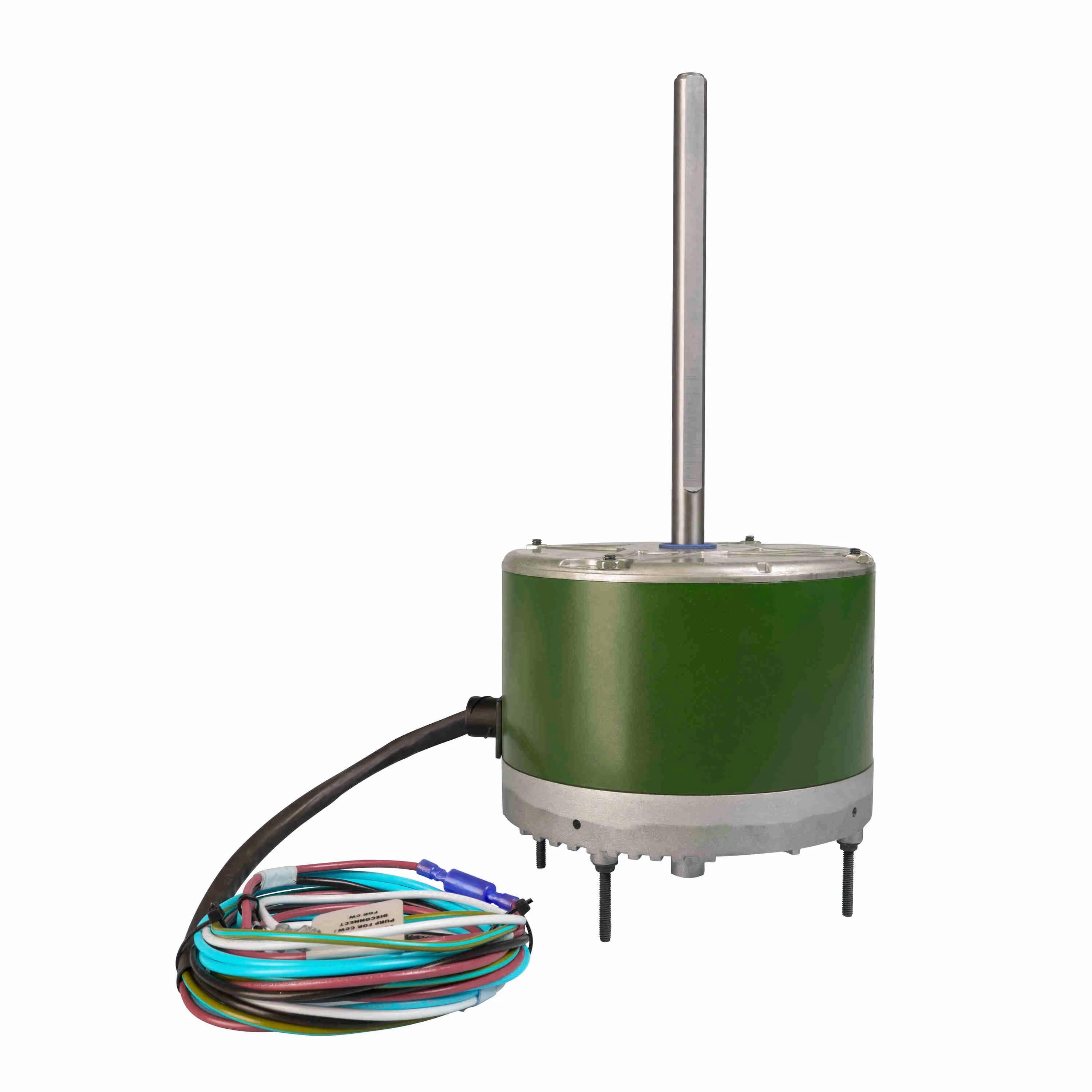

Genteq® - Genteq® 6303S 10-Pole Condenser Fan Motor, TEAO Enclosure, 1/3 hp, 208 to 230 V, 60 Hz, 1 Phase , 48 Frame, 825/1075 rpm Speed, Extended Studs Mounting
- Item #: 6303S
- Manufacturer: 6303S selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Genteq®
- Min. Order Qty: 1
- Qty. Interval: 1
Genteq®, 6303S, Condenser Fan Motor, 10-Pole, Electronically Commutated Motor Special Features, 1/3 hp, 208 to 230 V, 2.8 A, 60 Hz Frequency, 1 ph, 825/1075 rpm Speed, 2 Speed, TEAO Enclosure, 48 Frame, 0.5 in Dia Shaft, CCW/CW Rotation, 1 Service Factor, Ball Bearing, Extended Studs Mounting, 40 deg C, Rolled Steel, 10.98 in L Dimensions
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Genteq_6303S_User_Manual.pdf- Permanently Lubricated Ball Bearing
- Mounting, Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts or OEM Mounting Holes
- Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
- 1/3 HP (Replaces 1/3-1/12) Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
- 208-230 Vage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
- Class B Insulation, -20 to 60 deg C Ambient
- Rotation, Reversible (Factory Set To CCW Lead End)
- Leads - 54 in Length With 1/4 in Fast On Terminals, Ground Wire 10 Eyelet
- Electronically Commutated (ECM), Electronically Protected
