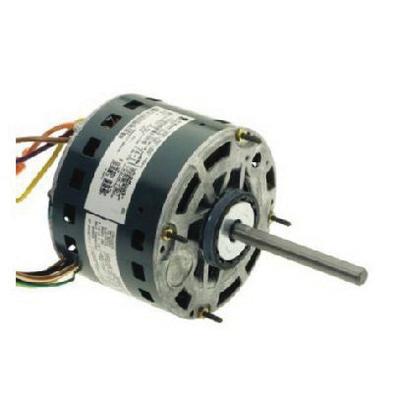

Fasco® Blower Motor, 208 to 230 V, 2.7 A, 1/3 hp, 1075 rpm, 0.25 kW, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 4 in L Shaft, Clockwise, Counter-Clockwise Rotation, 3 Speed, Flat Shaft Type, Sleeve Bearing, Through-Bolt Mounting, Direct Drive, Continuous Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Rolled Steel, 40 deg C, 5.5 in Dia x 9.4 in L
Designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements.
- Reversible rotation
- Mounting holes in shell for capacitor bracket
- Designed for 370V capacitor (not furnished)
- 4” Shaft Extension
- Extended clamp screws on shaft end with ring kit provided
- Ring kit allows both 2-1/4” and 2-1/2” resilient ring mounting
- Automatic thermal overload protection
- Permanent Split Capacitor motor with 3 Speeds
Application: Industrial;Continuous Air Over Applications, Such as Furnace Blowers or Central Air Handling Unit
