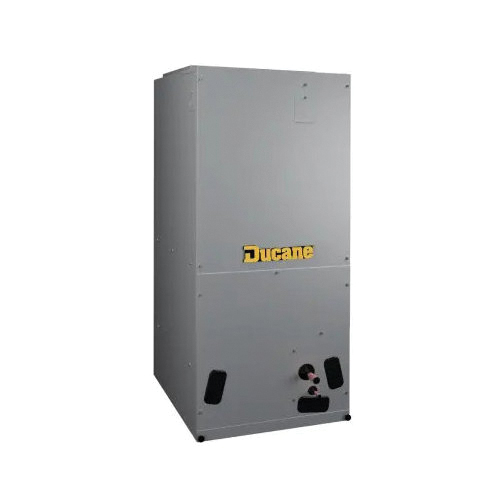

Ducane™ - Ducane™ 7AH1RE30DX Compact Air Handler With TXV, Omniguard Coil, 2-1/2 ton, 884 to 2138 cfm, 208/230 V, 11.5 A, 1/2 hp
- Item #: H-7AH1RE30DX
- Manufacturer: 7AH1RE30DX
- Fuel Surcharge: A $35 fuel surcharge will be added at time of invoice. selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Ducane™
- Min. Order Qty: 1
- Qty. Interval: 1
Ducane™ Compact Air Handler, 7AH1RE Series, 2-1/2 ton Nominal Capacity, 208/230 V, 11.5 A, 1/2 hp, 60 Hz, 1 ph, 884 to 2138 cfm, Horizontal, Upflow, R-454B Refrigerant, 884 to 2138 cfm Flow Rate, 25 A Fuse Rating, 3/8 in Liquid Line, 3/4 in Suction Line, 18 x 20 x 1 in Filter, 9 Speed, ECM Motor, Steel, Galvanized
- Series 7AH1RE Series
- Filter Size 18 x 20 x 1 in
- Suction Line Size 3/4 in
- Amperage Rating 11.5 A
- Voltage Rating 208/230 V
- Refrigerant Type R-454B
- Nominal Capacity 2-1/2 ton
Catalog- Compact Design Up to 20% shorter across all tonnages
- Dual-voltage ready; Shipped 230V with a 115V conversion kit included
- 9-speed constant torque motor
- Improved corrosion protection with painted delta plates and distributor tube enhancements
- Factory-installed but removable duct flanges for wider application use
- Omniguard®Total Corrosion Protection Technology
- Dealer-installed heat strips add supplemental heat on cold days
- Dependable 10-year warranty
