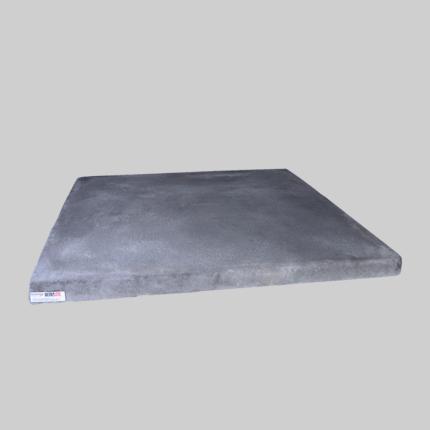

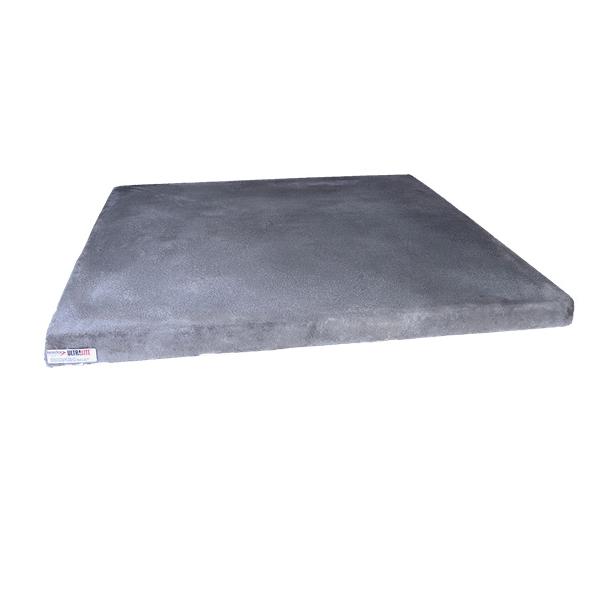

The UltraLite® U4558-3 is a lightweight concrete composite equipment pad designed to support HVAC condensers, heat pumps, and other outdoor equipment. UltraLite® is strengthened by miles of fiber in each square foot of fiber-cement coating which also provides excellent resistance to cracking or breaking. The concrete outer skin and EPS foam inner core provide flexibility and vibration dampening. The solid bottom provides excellent resistance to settling.
DiversiTech® UltraLite® Equipment Pad, 776 lb Capacity, 45 x 58 in Pad, Concrete, Finish: Rough, Gray, 45 in Length, 58 in Width, 3 in Thickness, Additional Information: Rectangular Shape
- Type UltraLite
- Length 45 in
- Width 58 in
- Series U
- Suitable For Use With Air-Conditioning Compressor;Condensing Unit
- Specifications Pad Weight:93 lbs
- Finish Rough
- Color Gray
- Material Concrete
- Dimensions 45 in L x 58 in W x 3 in D
- Domestic/Import Domestic
- Warranty Limited Lifetime
Specification Sheet
- Extremely lightweight, the UltraLite® pad is a concrete pad at the weight of plastic, about 2.5 lbs. per square foot
- Concrete outer skin and EPS foam core provide flexibility and vibration dampening
- Flat bottom design provides excellent resistance to sinking and settling
- The textured surface of the UltraLite® prevents equipment sliding and allows water drainage
- Extensive selection of sizes available including wedge-shaped pad
- Drillable for securing unit (1/4 x 1-1/4" Tapcon® recommended), either side or top surface
- Freeze/thaw, UV, chemical & flame-resistant for long-term life outdoors
- Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution
- Resistant to heating caused by the compressor and the surface is resistant to heat from incidental torch flame during installation
