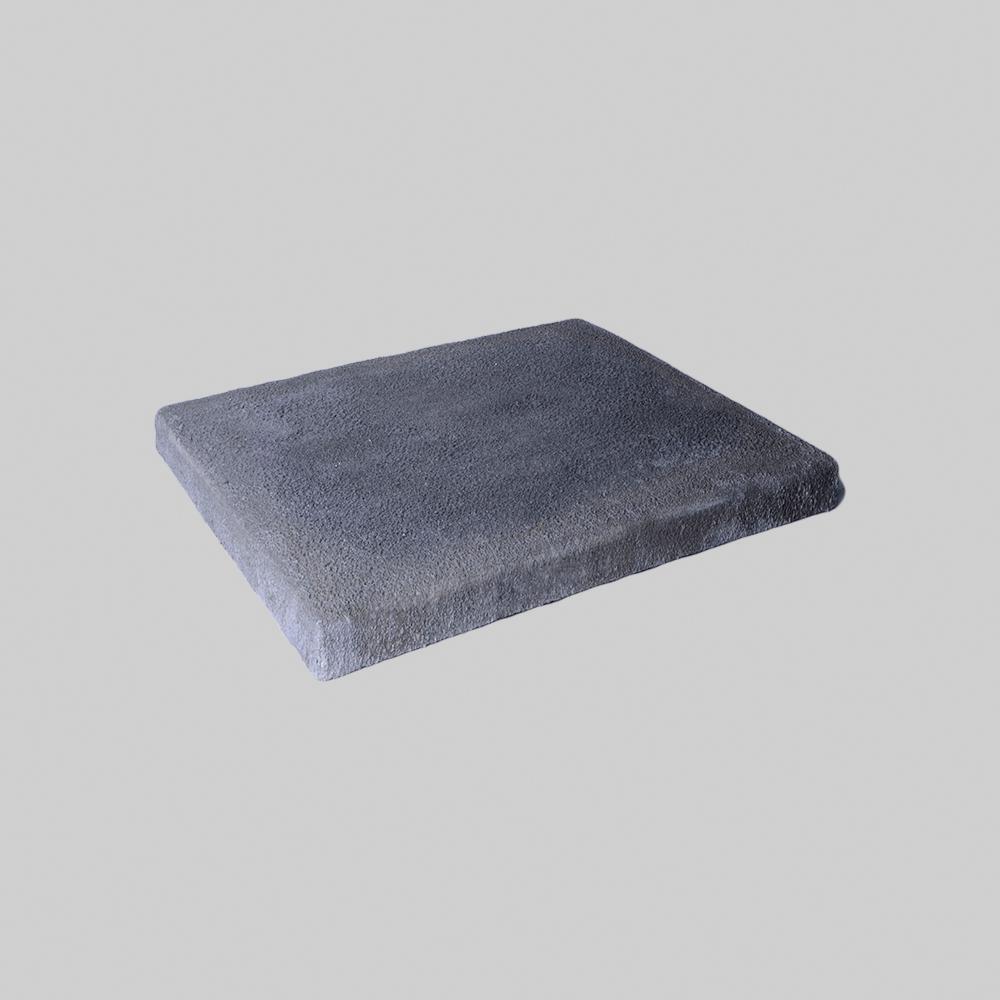

The UltraLite® UC3232-3 is a 32 x 32 x 3 lightweight concrete composite equipment pad designed to support condensers, heat pumps and other outdoor equipment. UltraLite® is strengthened by miles of fiber in each square foot of fiber cement-coating which also provides excellent resistance to cracking or breaking. The concrete outer skin and EPS foam inner core provide flexibility and vibration dampening. The solid bottom provides excellent resistance to settling.
DiversiTech® UltraLite® Equipment Pad, 464 lb Capacity, Concrete/Foam, Gray, 32 in Length, 32 in Width, 3 in Height, Domestic/Import: Domestic
- Type UltraLite
- Length 32 in
- Width 32 in
- Series UC
- Suitable For Use With Air-Conditioning Compressor;Condensing Unit
- Specifications Pad Weight:26 lbs
- Height 3 in
- Color Gray
- Material Concrete/Foam
- Dimensions 32 in L x 32 in W x 3 in D
- Domestic/Import Domestic
- Warranty Limited Lifetime
Catalog
- Extremely lightweight, The UltraLite® pad is a concrete pad at the weight of plastic, about 2.5 lb/sq-ft
- Concrete equipment pad
- Flat bottom design provides excellent resistance to sinking and settling
- The textured surface of The UltraLite® prevents equipment sliding and allows water drainage
- Drillable for securing unit (1/4 x 1-1/4 in Tapcon® recommended), either side or top surface
- Freeze/thaw, UV, chemical and flame-resistant for long-term life outdoors
- Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution
- Resistant to heating caused by the compressor and the surface is resistant to heat from incidental torch flame during installation
