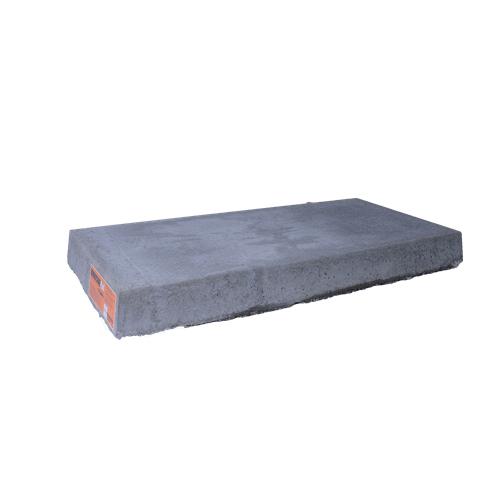

HT1840-4 is a 18x40x4 in. pad designed to meet the higher wind loads of taller equipment. These heavier pads provide sufficient weight to meet code for taller condensing units in wind zones up to 175 mph. Check with your local DiversiTech® distributor or our online wind table chart to confirm if this pad is correct for your application. Standard freight policy applies only to shipments to Florida and the Gulf Coast. All other shipments are shipped FOB Leesburg, FL.
DiversiTech® Equipment Pad, 1104 lb Capacity, 18 x 40 in Pad, -48 to 180 deg F, Concrete, Finish: Smooth, Gray, 18 in Length, 40 in Width, 4 in Thickness, Additional Information: Rectangular Shape
- Length 18 in
- Width 40 in
- Depth 18 in
- Material Concrete
- Finish Smooth
- Color Gray
Technical Bulletin
- Designed to meet the strict requirements of Florida Building Code Notice for taller and/or lighter equipment
- Hurricane T-Class Pad™ is engineered to withstand wind speeds up to 175 MPH
- Comprehensive wind table chart provided on website for equipment/pad size guidance
- Uses standard Tapcon screws and does not need special inserts to securely attach to the equipment
- Made from 7000 PSI concrete, no other pad can match the compressive strength of The Hurricane T-Class Pad™
- 1162 lbs. anchor pullout strength, pad will hold onto mounted equipment even in extreme conditions
- Full EPS foam bottom resists settling and provides vibration dampening
- Designed with steel reinforcement to add strength and stability to the pad
