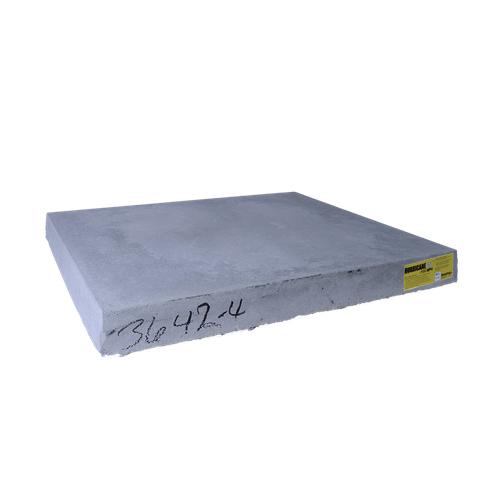

H3642-4 is a 36x42x4 in. equipment pad designed specifically for all Florida counties in hurricane wind zones up to 150 mph. The Hurricane Pad meets all the stringent local code requirements for 150 mph wind zones. Check with your local DiversiTech® distributor or our online wind table chart to confirm if this pad is correct for your application. Standard freight policy applies only to shipments to Florida and the Gulf Coast. All other shipments are shipped FOB Leesburg, FL.
DiversiTech® Equipment Pad, 792 lb Capacity, 36 x 42 in Pad, -48 to 180 deg F, Concrete, Finish: Smooth, Gray, 36 in Length, 42 in Width, 4 in Thickness, Additional Information: Rectangular Shape
- Type HunkLite Equipment Pad
- Length 36 in
- Width 42 in
- Series L
- Suitable For Use With Condenser;Pump;Filter
- Specifications Thickness:3 in
- Finish Smooth
- Color Gray
- Material Concrete
- Dimensions 36 in L x 42 in W x 3 in D
- Domestic/Import Domestic
- Warranty Limited Lifetime
Technical Bulletin
- Designed to meet Florida Building Code requirements is designed for installations up to 150 MPH
- Comprehensive wind table chart provided on website for equipment/pad size guidance
- Uses standard Tapcon screws and does not need special inserts to securely attach to the equipment
- Incorporates an EPS foam core which makes it much lighter than solid concrete, allowing for easy placement and removal with less strain
- Made from 7000 PSI concrete, no other pad can match the compressive strength of The Hurricane Pad™
- 1146 lbs. anchor pullout strength, pad will hold onto mounted equipment even in extreme conditions
- Full EPS foam bottom resists settling and provides vibration dampening
- Designed with steel reinforcement to add strength and stability to the pad
