DiversiTech - Condenser Pad, 36 in x 36 in x 3 in, Grey Plastic Composite, E-lite

  • Item #: EL-3636X3
  • Manufacturer: EL3636-3
  • Brand Name: DiversiTech
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

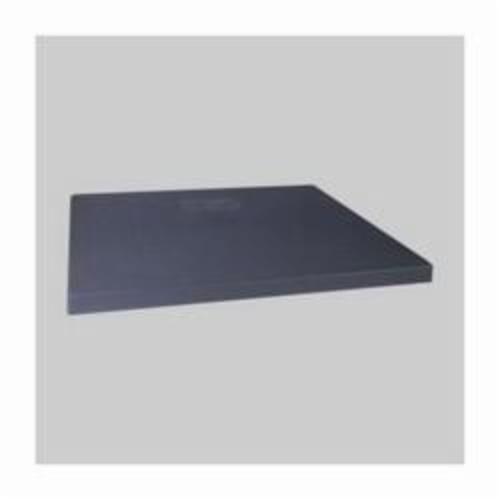

E-Lite® is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E-Lite® is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

DiversiTech E-Lite® Equipment Pad, 36 in Length, 36 in Width, 3 in Depth, Polypropylene, Gray, Domestic

  • Series E-Lite™
  • Length 36 in
  • Width 36 in
  • Depth 3 in
  • Material Polypropylene
  • Color Gray
  • Domestic/Import Domestic
  • Warranty Limited Lifetime
  • pdfData/Spec Sheet-1 https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_EL1836_3_Datasheet.pdf
  • pdfData/Spec Sheet-2 https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_EL18363_Data_Sheet_1.pdf
  • pdfBrochure https://www.shearersupply.com//ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_EL1836_3_Brochure.pdf
  • 389 lb estimated allowable load
  • Lightweight, yet rugged
  • Drillable for securing unit
  • Uniform ribbing transfers load evenly
  • Subtle texture resists unit slide
  • Freeze/thaw: Flawless performance under the 25-cycle regimen specified by ASTM C67
  • Chemical resistance: does not crack, flake, or warp when tested per ASTM D2299 with the following R-22 and R-134A, synthetic canine urine, compressor oil, salt solution, 20 percent by volume
