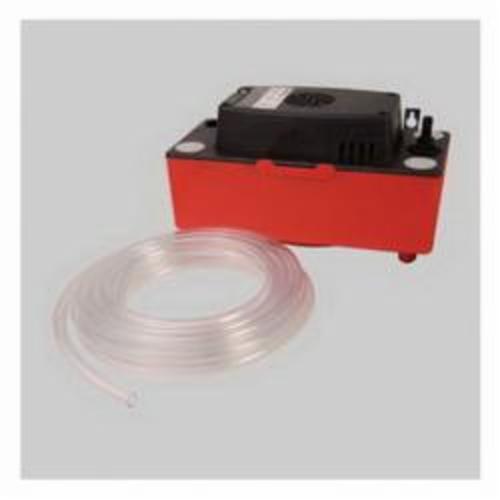

DiversiTech® CP-22 Series pumps beat the industry standard of 20 ft height by 2 ft and come with innovative features such as vibration dampening ft and motor mounts, metal hang tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, plug protector and detailed installation instructions. Two terminals are provided allowing the installer exibility to connect air handler shut down an important safety consideration.
DiversiTech® Condensate Pump, Series: CP Series, 230 V, 1.9 A, 60 Hz, 1.6 gpm, 0.5 gal Tank, 160 deg F, 12.2 in L x 7.8 in W x 9.6 in H, Gray
- Series CP Series
- Electrical Ratings 230 V 1 A 60 Hz
Catalog
- This rugged pump has 22 ft of lift, compared to the typical 20 ft
- Integrating the CP-22 into your system is easy, 1/4 in quick-connect terminals provide easy connection to the built-in overflow switch
- Two terminals are provided allowing the installer flexibility to connect air handler shut down
- Switch features SPDT isolated contacts ready for connection to building automation systems
- 4.4 in H inlet from base
- Input type, three prong molded plug (120 VAC), NEMA 6-15 plug (230 VAC)
- 140 deg F continuous-duty
