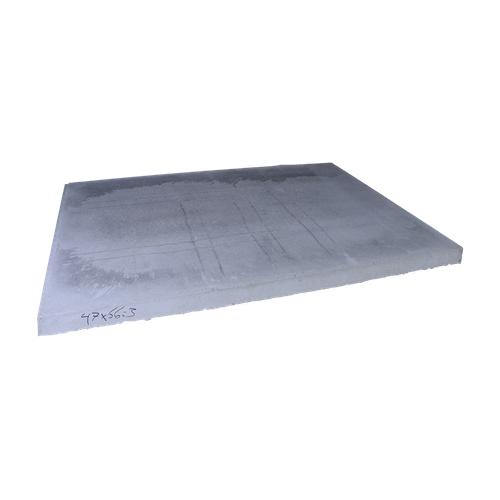

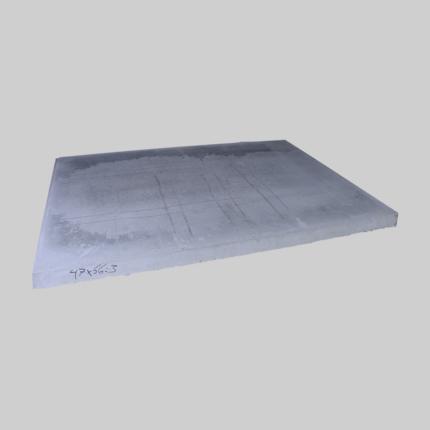

The CladLite® 4766-3 is a 47x66x3 in. lightweight concrete equipment pad that combines the strength and look of a perfectly poured concrete pad without the extreme weight. It is used as an outdoor support base for industrial applications such as condensers, heat pumps, etc. CladLite lightweight concrete equipment pads are specially engineered to be 80% lighter than solid concrete yet durable enough to withstand the harshest environment conditions.
DiversiTech® CladLite® Equipment Pad, 1212 lb Capacity, 47 x 66 in Pad, -48 to 180 deg F, Concrete, Finish: Smooth, Gray, 47 in Length, 66 in Width, 3 in Thickness, Additional Information: Rectangular Shape
- Type Reinforced Concrete, Cladlite
- Length 47 in
- Suitable For Use With Condenser
- Specifications Weight:219 lbs
- Width 66 in
- Finish Smooth
- Color Gray
- Material Concrete
- Dimensions 47 in L x 66 in W x 3 in T
- Warranty Limited Lifetime
Technical Bulletin
- CladLite® pads use steel reinforcements throughout the pad to add strength
- 80% lighter than solid concrete for easier installation and handling
- Made from concrete, excellent durability even in extreme outdoor conditions
- Flat bottom design provides excellent resistance to sinking and settling
- Proven resistance against R-22 and R-134a, compressor oil, salt solution, and synthetic canine urine
- Freeze/thaw, UV, chemical & flame resistant for long-term life outdoors
- Excellent resistance to cracking or crazing
