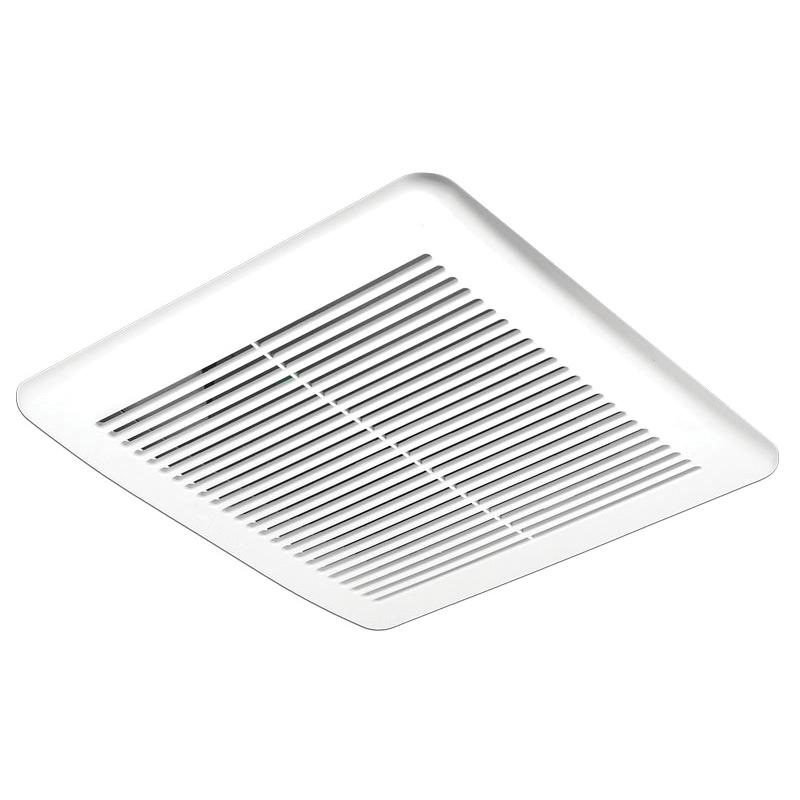

Delta Breez - Delta Breez BreezSlim Slim Series SLM80-110-C Exhaust Fan, 120 V, 0.6 A, Steel Housing, Galvanized Housing

  • Item #: SLM-AC3
  • Manufacturer: SLM80-110-C
  • Brand Name: Delta Breez
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
loading

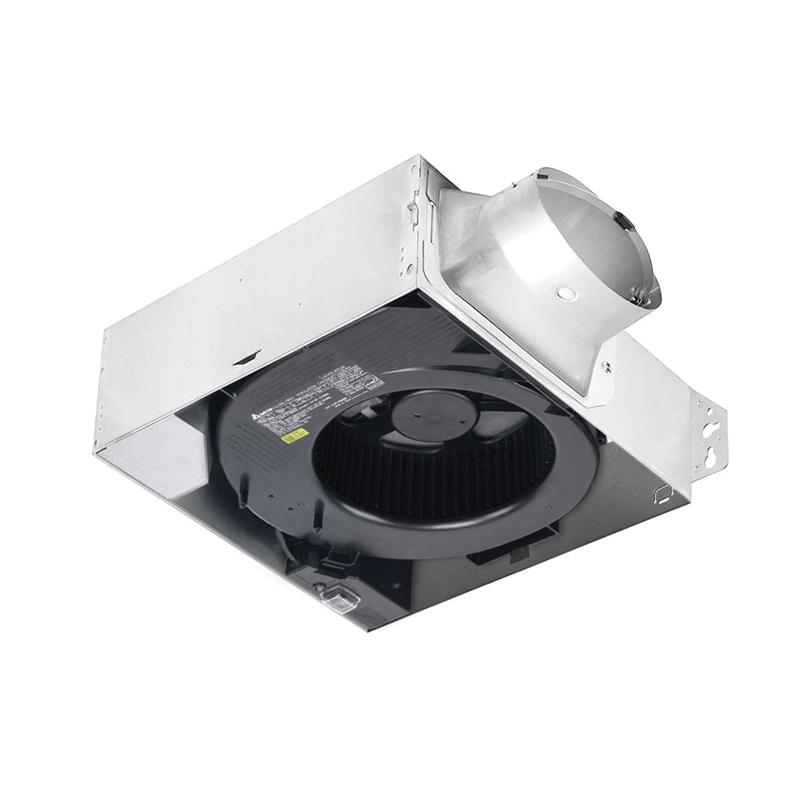

Delta BreezSlim SLM80-110-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.2 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1" static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Delta Breez BreezSlim Exhaust Fan, Series: Slim Series, 120 V, 0.6 A, 60 Hz, 8.5, 16.5 W, Ceiling/Wall Mounting, 13 in L x 13 in W Grille, 4 in Duct, Brushless DC Motor, 80 cfm, 110 cfm, 0.4 sones, 1.2 sones Noise Rating, 11-1/4 in Overall Length, 10-1/2 in Overall Width, 4 in Overall Height, Steel Housing, Galvanized Housing, Additional Information: 0.1 in-WG Static Pressure, 6.6 to 9.4 cfm/W Energy Efficiency

  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Delta_Breez_SLM80_110_C_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Delta_Breez_SLM50_110_C_Line_Drawing.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Delta_Breez_SLM80_110_C_Submittal.pdf
  • videoVideo Link https://www.youtube.com/embed/YouX75lHH_M
  • SLM80-110-C can fit with Ceiling Radiation Damper SMT-CRD2

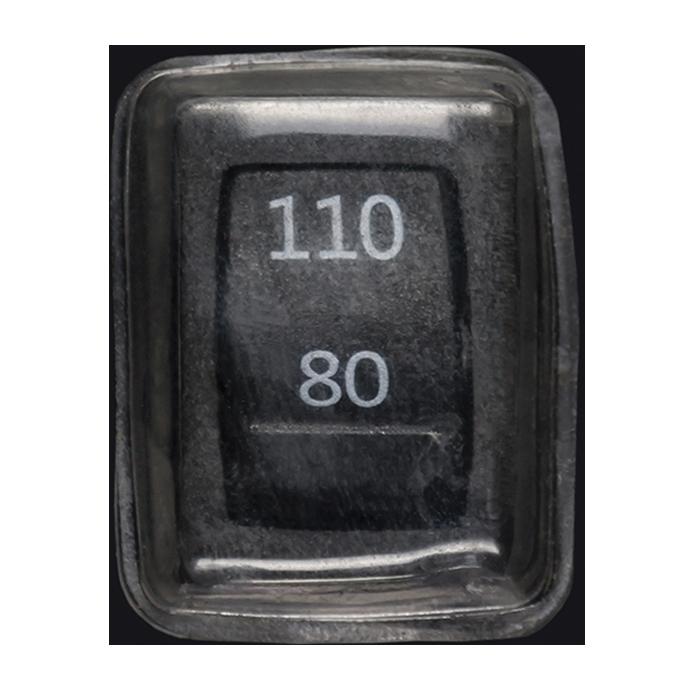

  • Full speed adjustable, 80 CFM or 110 CFM

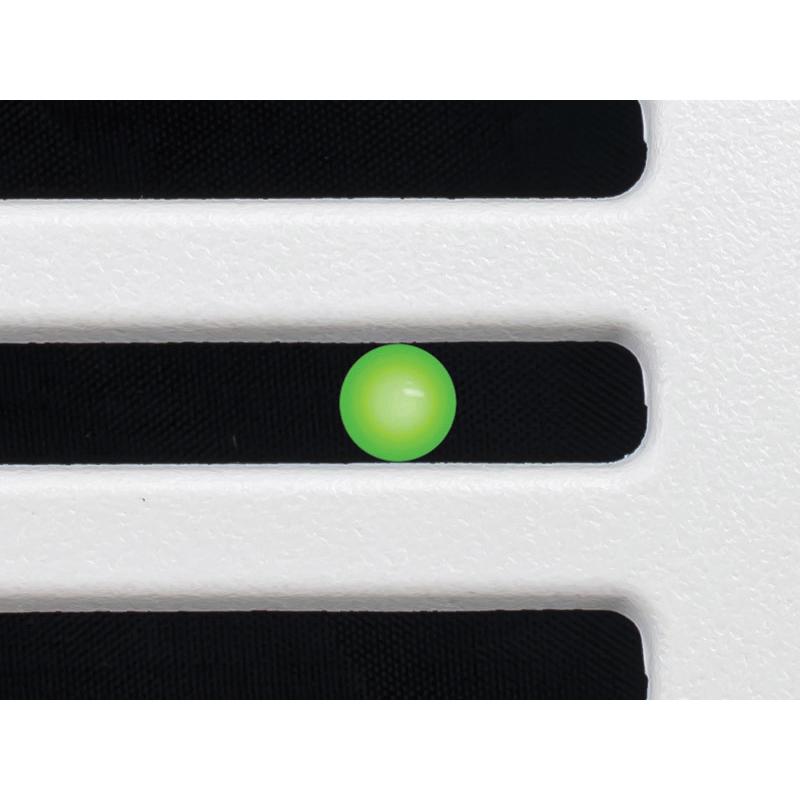

  • Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
