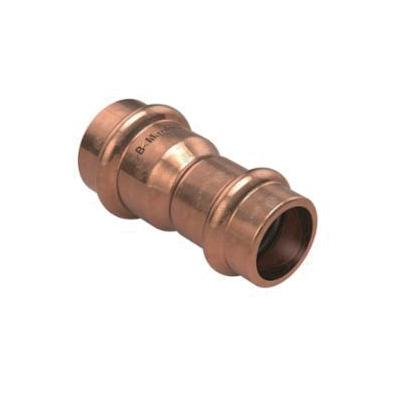

Conex Banninger - Conex Banninger MaxiPro MPA5240 0060501 Reduced Coupler, 3/4 in Press x 5/8 in Press, Copper
- Item #: MPA5240 0060501
- Manufacturer: MPA5240 0060501 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Conex Banninger
- Min. Order Qty: 1
- Qty. Interval: 1
Conex Banninger MaxiPro Reduced Coupler, Series: MPA5240 Series, Coupler Fitting, 3/4 in Connection Size 1, Press Connection Type 1, 5/8 in Connection Size 2, Press Connection Type 2, Press|Press Connection, Copper, Copper Material Construction, For Use With: R-1234YF, R-1234ZE, R-125, R-134A, R-290, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A and R-444 Refrigerants, 52-1/2 in L, 700 psig, -40 to 284 deg F
Catalog- Flame-free installation avoids the need for a hot work permit and the risk of fire on site
- No nitrogen purge - MaxiPro is a mechanical joint, thus eliminating the need for nitrogen purge during the jointing process
- Lower installed cost - a professional fitting which is quick and simple to install, saving time and money
- Higher productivity, improved flexibility - work may be completed during working hours/public access, by a single employee
- Easy access to work sites, no gas bottles required
- Quality designed in - reliable, repeatable, permanent, tamper-proof connections every time
- Three-press points, one each side of the bead and one press compressing the O-ring
- This provides a permanent and secure joint
- A high quality HNBR O-ring forms a secure leak-free joint when pressed
- Protected O-ring - lead-in edge design aids tube insertion and helps protect the O-ring from damage or displacement
- Fittings are marked MaxiPro and identified with a pink mark indicating their suitability for high pressure air conditioning and refrigeration applications
- Electrical continuity - maintains earth continuity without the need for additional earth continuity straps
- Field proven - press-fit technology, field proven over 20 years and millions of installed fittings worldwide
- Compact tooling - light compact tooling provides easy access to tightly spaced tube runs
