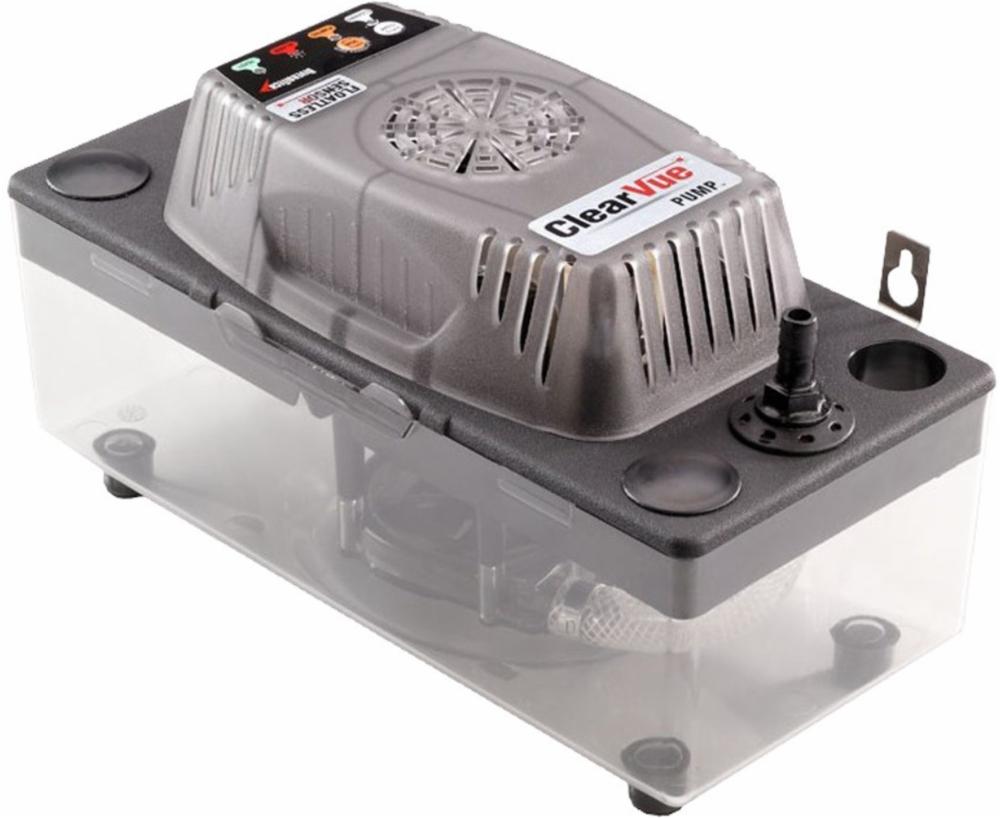

ClearVue™ - Condensate Pump, 120 V, 22 ft. Lift, 1.6 gpm

  • Item #: IQP-120
  • Manufacturer: PMP01906
  • Brand Name: ClearVue™
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

ClearVue™ Condensate Pump, Gray, 120 Volts/60 Hz;1.9 Amps Electrical Ratings, 22 ft Shutoff Head, +160 °F Temperature Rating, 1.6 gpm Flow Rate, 1/2 gal (Tank) Reservoir Capacity, 4.4 in (Inlet Height From Base) Inlet Size, 2 Year Warranty, Stainless Steel Mounting Tabs;Silicone Rubber Feet;Reversible Deck;Four Inlet Holes;Led Indicator Lights Includes, Stainless Steel (Mounting Tab);Silicon Rubber (Feet), 11.8 W x 5.9 H x 6.7 D in ClearVue’s iQ Technology™ and Floatless Sensor™ make this the most advanced condensate pump ever. This new pump can provide up to 22ft of lift if needed. ClearVue™ runs at the minimum speed needed, saving wear on the pump. The pump selects the lowest effective speed, making it quieter than a regular pump. Its unique self-cleaning feature senses problems and automatically enters a self-cleaning mode using condensate water to fix the issue. The ClearVue™ pump features a clear bottom tank to easily check the water level. Other features include:stainless steel mounting tabs, silicone rubber feet, reversible deck, four inlet holes, and LED indicator lights.

  • Variable Speed and Lift:ClearVue™ senses how fast the condensate is entering the tank and adjusts its speed and lift to keep the tank clear. This helps ClearVue operate at the proper speed and makes the pump work quietly
  • Floatless Sensor™:Electromechanical float switches used in conventional condensate pumps are prone to mechanical failure including debris fouling, sunken floats, and misalignment. ClearVue’s Floatless Sensor™ eliminates the problems associated with conventional condensate pumps. No float, no problem
  • Push Button Drain:Need to drain the tank quickly Simply push the DRAIN button and ClearVue™ removes all the water in the tank fast
  • 2 Year Warranty:ClearVue™ has a dependable, extended 2 year warranty
  • LED Indicator Lights:ClearVue™ features four LED indicator lights:Ready, Pumping, Cleaning, and Alarm. The LED lights tell you what mode the pump is in at any given time
  • Check Valve:Removable duckbill check valve resists corrosion and wear and is self cleaning
  • Molded Silicon Rubber Feet:ClearVue™ includes specially designed rubber feet that dampen vibration and noise making ClearVue™ quiet and easy to live with
  • Innovating Packaging:An innovative packaging design with a clear front shows the pump and highlights its unique features. Several ClearVue™ pumps may also be stacked together to create a powerful visual display
  • Clear Tank:The clear tank feature of ClearVue™ allows the user to see the activities inside making troubleshooting more accurate and much faster
  • Stainless Steel Hang Tabs:ClearVue™ contain two stainless steel hanging tabs that offer many installation options. The tabs are sturdy and durable, lasting longer than standard plastic mounts
  • Self-Cleaning:ClearVue™ condensate pump features a unique, self-cleaning mode to maintain and keep drain lines clear

Standard/Approvals: ETL Listed

Application: High Efficiency Condensing Furnaces and Humidifiers
