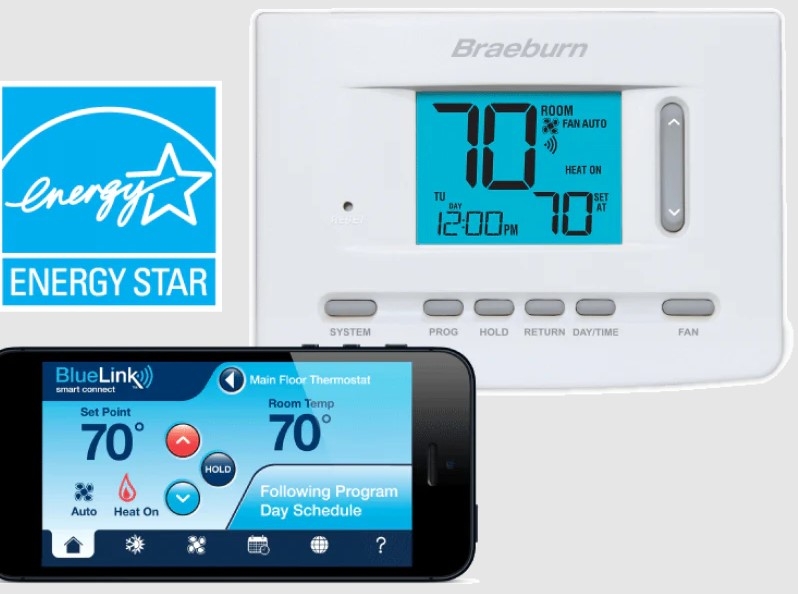

Braeburn® Wi-Fi Universal Thermostat, BlueLink Series, 18 to 30 VAC, 3 VDC, Programmability: 7, 5-2 day or Non-Programmable, Changeover: Auto, Manual, Battery, Hardwired Power Source, Up to 2 Heat/2 Cool Conventional, 3 Heat/2 Cool Heat Pump Stages, 3 sq-in Large, Back Light Display, 45 to 90 deg F Control Range, 40 to 99 deg F Display Range, +/-1 deg F Accuracy, Terminal Designation: Rc, Rh, W1/E/W3, W2, Y1, Y2, G, O/B, C, K, Dimensions: 5.16 in H x 3.7 in W x 1.38 in D
- Programmability 7, 5-2 day or Non-Programmable
- Stages Up to 2 Heat/2 Cool Conventional, 3 Heat/2 Cool Heat Pump
- Voltage Rating 18 to 30 VAC, 3 VDC
Catalog
- 7 day, 5-2 day or non-programmable
- Bright blue backlight
- User and installer lock modes
- SmartLimit temperature limits
- Circulating fan mode
- Wi-Fi works without common (C) wire on most systems, requires common on heat pump, heat only or cool only systems
- Compatible with virtually all smartphones, tablets or PC's
- Multi-color program groups simplify scheduling
- Text and e-mail service and temperature alerts
- BlueLink QuickCopy allows User to duplicate program and configuration to other thermostats
- QuickEdit makes schedule changes easy
- BlueLink SmartData energy report capability
- Monitor and control multiple thermostats
- Easy access dealer information
