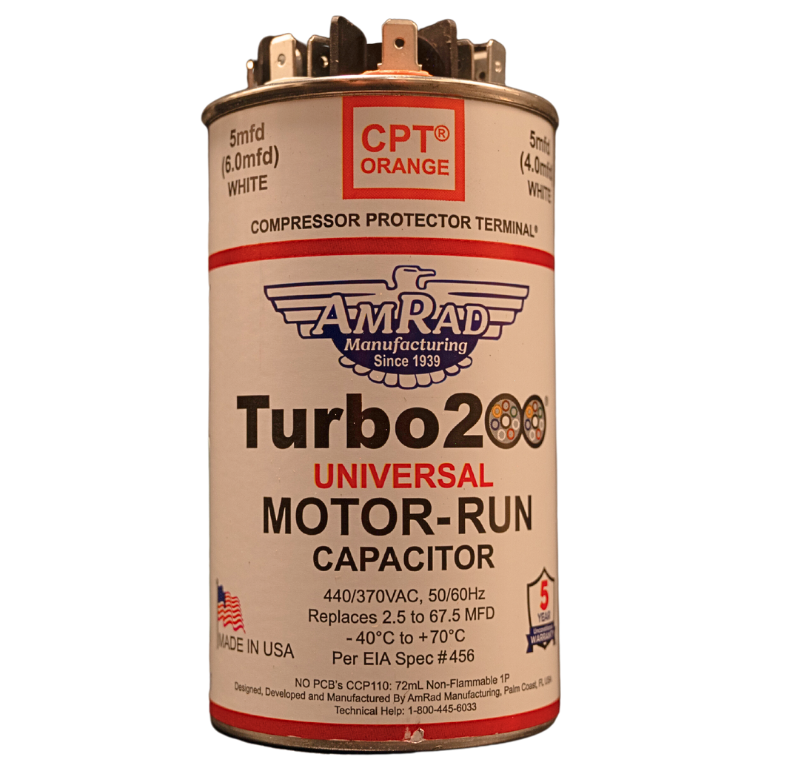

AMRAD - AMRAD Turbo 200® Series TURBO200 Motor Run Capacitor, MFD Rating: 2.5 to 67.5 uF, 370/440 VAC, Round, 2-1/2 in Dia
- Item #: TURBO200
- Manufacturer: TURBO200 selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: AMRAD
- Min. Order Qty: 1
- Qty. Interval: 1
The world's first universal line of multiple tapped, oil filled, metal can, motor run and motor start capacitors, Turbo 200® capacitors eliminate the need to inventory more than 200 individual single or dual value capacitors with a voltage rating up to 440 VAC. The Turbo easy start is a "low loss" metallized motor start capacitor with a built-in potential relay. For a smooth and fast boost of air conditioner and refrigeration compressors, simply select the capacitance range for your equipment, up to 5 tons.
AMRAD Motor Run Capacitor, Series: Turbo 200® Series, 2.5 to 67.5 uF MFD Rating, 370/440 VAC, 50/60 Hz, Round Shape, Male Quick-Connect Terminal, 4-1/2 in Case Height, -40 to 70 deg C, Aluminum Case, 2-1/2 in Dia, 4 in Height, 2-1/2 in Width, 2-1/2 in D, For Use With: More than 200 Motors, Domestic
The Turbo®200 capacitor has a combined total of 67.5 microfarads (mfd), with taps at 2.5mfd, 5.0mfd, another 5.0mfd, 10.0mfd, 20.0mfd and 25.0mfd
- Voltage Rating 370/440 VAC
- Shape Round
Instruction/Installation Manual
Video Link
- Made in the USA
- Filled with a thick non-PCB dielectric fluid to reduce heat
- Rust free all brass terminals
- 5 Year warranty
- Individually tested and labeled with exact MFD ratings at completion of manufacturing
- Universal run capacitor (2.5-67.5 mfd)
- CPT (Compressor Protector Terminal) included.
