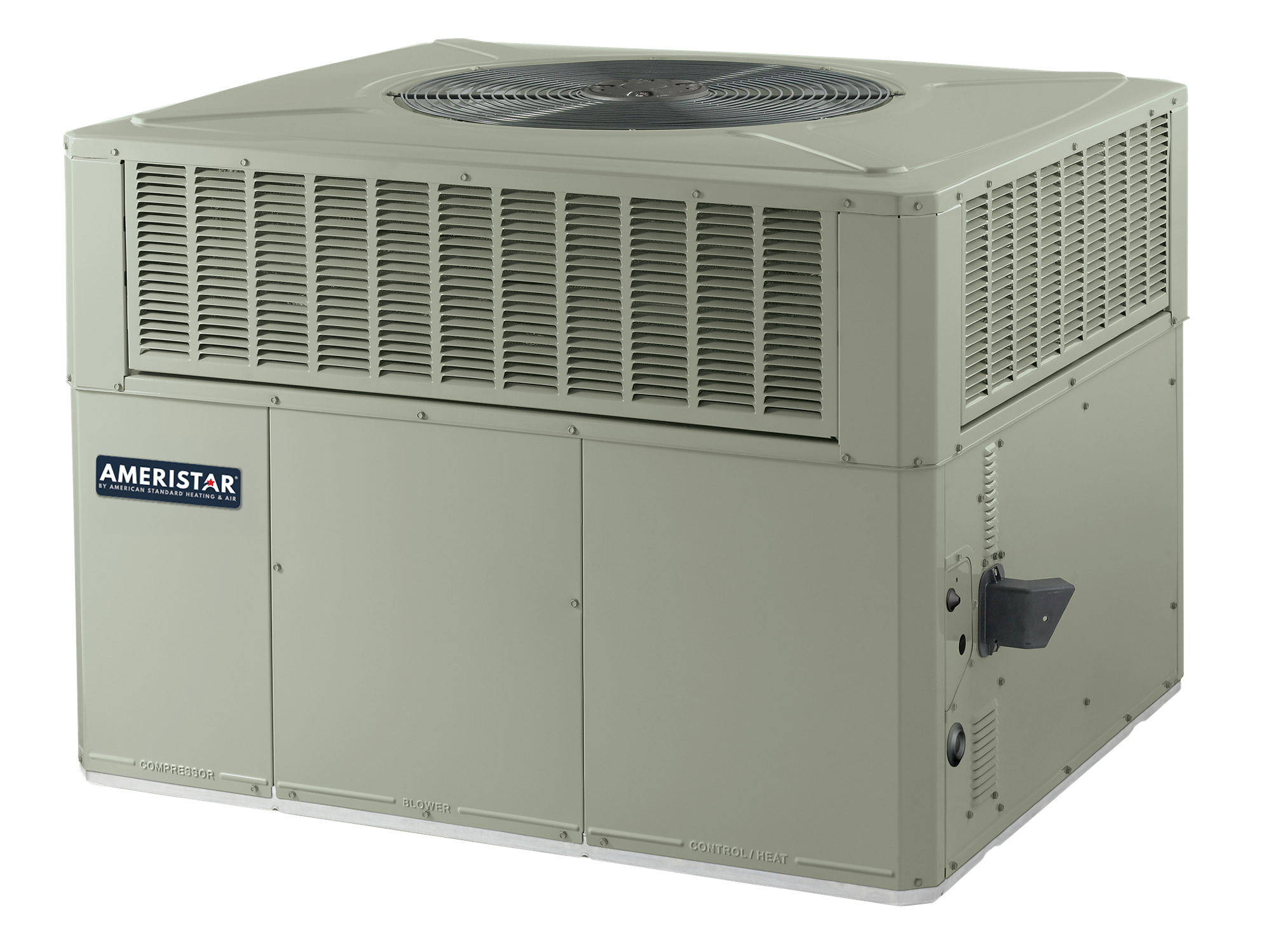

AMERISTAR® - AMERISTAR® A5PH3036A1000A Heat Pump Packaged Unit, 3 ton Nominal, 34000 Btu/hr Heating BTU, 208-230 V, 26 A, 1150 cfm
- Item #: A5PH3036A1000A
- Manufacturer: A5PH3036A1000A selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: AMERISTAR®
- Min. Order Qty: 1
- Qty. Interval: 1
AMERISTAR® Heat Pump Packaged Unit, 3 ton Nominal Capacity, 36000 Btu/hr Cooling, 34000 Btu/hr Heating, 208-230 V, 26 A, 3.11 kW Wattage, 1/5 hp, 60 Hz, 1-Phase, 825 rpm Rotational Speed, Scroll Compressor, 1150 cfm, 14 SEER, Convertible, FNPT Connection, 3/4 in Connection, R-454B Refrigerant, 1 Stages, 40 A Fuse Rating, 70.9 dB Sound Level, Direct Drive, 15.49 sq-ft Face Area Outdoor, 3.5 sq-ft Face Area Indoor Coil, 24 FPI Outdoor, 15 FPI Indoor Fins per Inch, Steel, Finish: Enamel, 55 to 115 deg F, 38 in H x 49 in W x 42 in D
- SEER Rating 14
- Tonnage 3 Tons
- Refrigerant Type R-454B
- Sound Level 70.9 dB
- Compressor Type Scroll
- Drive Type Direct
- Dimensions 38 in H x 49 in W x 42 in D
- Frequency Rating 60 Hz
- Voltage Rating 208-230 V
Instruction/Installation Manual
- 3 Ton Capacity: Suitable for cooling small to medium-sized residential spaces.
- 14 SEER Rating: Offers energy-efficient operation to help reduce cooling expenses.
- 208-230V Operation: Standard residential voltage for easy setup and compatibility.
- Durable Build: Constructed to withstand outdoor elements, ensuring reliable long-term use.
- Quiet Performance: Minimizes noise, contributing to a comfortable indoor environment.
- American Standard Quality: Designed for consistent cooling and precise temperature control in residential settings.
