Ameristar™ - AMERISTAR® A4HP4 Series A4HP4030D A4HP4030D1000A Split-System Heat Pump, 208/230 V, 15 A, 1/8 in, 1 ph Phase, Steel
- Item #: A4HP4030D1000A
- Manufacturer: A4HP4030D1000A selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: Ameristar™
- Min. Order Qty: 1
- Qty. Interval: 1
Discover the ultimate in dependable heating and cooling with our single-stage heat pump offering quiet comfort with a nominal sound of 70 to 75 dB.

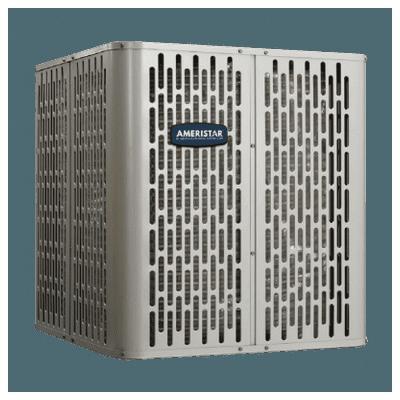

AMERISTAR® Split-System Heat Pump, A4HP4 Series, Model: A4HP4030D, 208/230 V, 15 A, 1/8 in, 60 Hz, 1 ph Phase, 850 rpm Rotational Speed, 2820 cfm, 14.3 SEER, 7.8 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 25 A Fuse Rating, Direct Drive, Tonnage: 2.5 ton, 70 to 75 dB Sound Level, 1 Stages, Steel, Finish: Galvanized/Painted, 28-5/8 in H x 29-3/4 in W x 29-3/4 in D
Ameristar - Warranty.pdf
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish
- The corner panels are pre-painted
- All panels are subjected to our 1000 hr salt spray test
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches
- The compressor features internal over temperature and pressure protection
- Other features include centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer
- The coil is protected on all four sides by louvered panels
- As manufactured, this system has a cooling capacity to 55 deg F
- The addition of an evaporator defrost control permits operation to 40 deg F
- The addition of an evaporator defrost control with TXV permits low ambient cooling to 30 deg F
- Thermostats cooling only and heat/cooling (manual and automatic change over)
- Sub-base to match thermostat and locking thermostat cover
