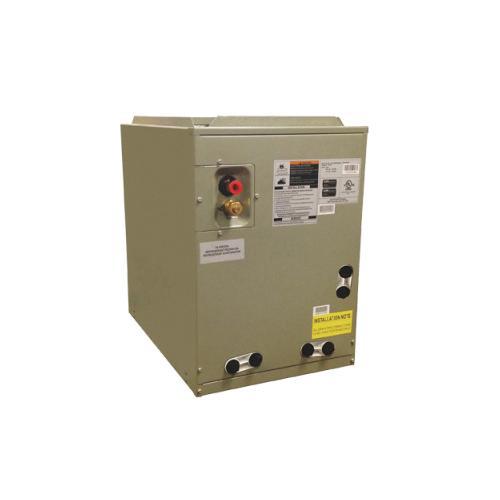

American Standard, Indoor Coil, 4MXC Series, Convertible (Upflow/Downflow/Horizontal Left or Right) Air Flow, Flow Control Check Valve Metering Device, 13 to 14 SEER, 18000 to 30000 Btu/hr Cooling Capacity, Aluminum Tubing, 3/4 (Gas) in Suction Line Size, R-410A Refrigerant, 1063 cfm @ 0.4 in Flow Rate, 3/8 in Liquid Line Size, 1.5;2;2.5 Ton Nominal Capacity, 3 Year Limited (Base Parts);10 Year Limited (Registered Parts) Warranty, Fixed Metering Device (Flow Control Check Valve - FCCV) Included, 20 in H x 14.5 in W x 21 in D The Ameristar line of heating and cooling products offers you flexible and affordable options for HVAC equipment replacement.
- Series 4MXC
- Dimensions 20 in H x 14.5 in W x 21 in D
- Suction Line Size 3/4 (Gas)
- SEER Rating 14
- Refrigerant Type R-410A
Catalog
- Ameristar indoor coils can be adapted to both 13 and 14 SEER models
- All Aluminum coil design
- 4MXC Ameristar cased coils may be installed in upflow, downflow or horizontal applications to fit the space provided in your customer’s home
- Foil-faced thermal insulation makes cleaning simple and helps reduce service time
- 100% Foil Lined Insulation
- Easy Case Attachment to Furnace
- 4 Way Application – Upflow/Downflow/Horizontal (left/right)
- Sloped non-corrosive drain pan – UL rated 275°F max
- Dual Side Condensate Drain Option
- Coils achieve 13-16 SEER with single stage outdoor units
- Painted Galvanized Steel Cabinet to Match Furnace
- 3-year base limited warranty on coil, & all other functional parts
- 10-year registered limited warranty on coil & all other functional parts
Standard/Approvals: UL Rated;cETLus Listed
Application: Refrigeration
