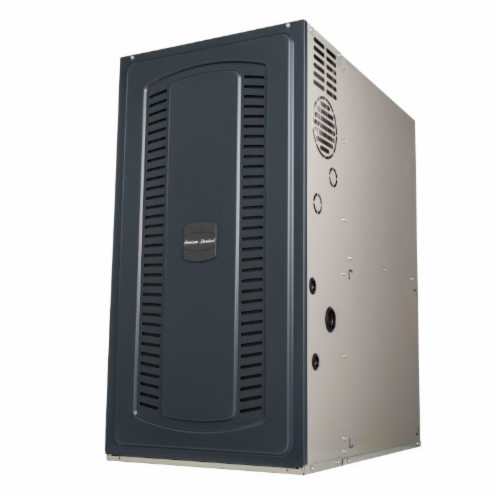

American Standard® - S9X1- 120K BTU Silver -95% Single Stage with ECM Multi- Speed Motor - Upflow/Horizontal- 24.5
- Item #: S9X1D120U5PSBA
- Manufacturer: S9X1D120U5PSBA selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: American Standard®
- Min. Order Qty: 1
- Qty. Interval: 1
American Standard® Gas Fired Furnace, S9X1D120U5 Model, 120000 Btu/hr Input, 120 VAC, 14.1 A, 1 hp, 95 % AFUE, 1 ph, 60 Hz Frequency, 1 Stage, Upflow/Horizontal Left/Right Configuration, 1/2 in Connection, Natural/LP Gas Fuel, 6 Burners, 9 Speed, 11 in Dia x 10 in W Blower Size, 24-1/2 in W x 28-3/4 in D x 34 in H Cabinet, Constant Torque ECM Blower Motor, 1075 rpm Rotational Speed, Vented, 3 in Dia Vent, 5 ton, Silicon Nitride Hot Surface Ignition System, Steel, Pre-Painted Galvanized, 40 to 70 deg F Rise
- Configuration Upflow/Horizontal Left/Right
- Width D = 24.5"
- furnace efficiency 90%+
- Series Silver
- Tonnage 5 ton
- BTU Rating 120 K
- Stages 1 Stage
- Application UF/Horizontal L/R
- Fuse Size 24
- AFUE Rating 95 %
- Gas Type Natural Gas;LP Gas
- Cooling Capacity 5
- Amperage Rating 14.1 A
- Voltage Rating 120 VAC
- Weight 167 lbs
Catalog
- High-efficiency constant torque ECM blower motor
- Self-diagnostic integrated furnace control board (IFC)
- Matches with single- and two-stage AC and HP for more system options
- Durable silicon nitride hot surface igniter
- Sealed combustion, 100% outside air option
- Multi-port, in-shot burners
- Tubular, stainless steel primary heat exchanger
- Patented Vortica™II blower design
- Pre-painted galvanized steel cabinet
- Fully insulated for quiet operation
