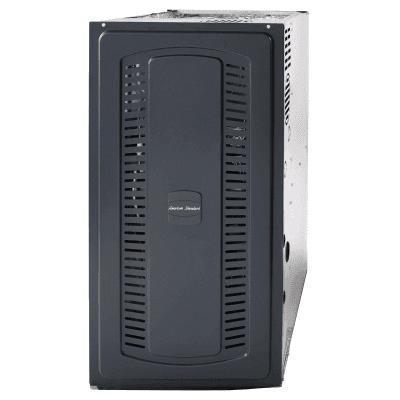

American Standard® Gas Furnace, Series: Silver S8X1, Up to 80% AFUE Rating, 1 Stage, 3-Wire Connection, ECM Motor, Tonnage: 4 ton, Hot Surface Ignition, Steel, Finish: Painted, Additional Information: 34 in H x 17-1/2 in W x 28 in D Dimensions
- Configuration 4 way
- Width B = 17.5"
- furnace efficiency 80%
- Series Silver S8X1 Series
- Tonnage 4 ton
- BTU Rating 60 K
- Stages 1 Stage
- Application Multi-Position
- Fuse Size 24
- AFUE Rating Up to 80 %
- Gas Type Natural Gas;LP Gas
- Input Capacity 60,000 Btu/hr
- Cooling Capacity 4
- Voltage Rating 115 VAC
Catalog
- With the Silver S8X1 gas furnace, you'll be met with consistent, steady flows of warm air, so you don't need to worry about uneven indoor temperatures again
- While this gas furnace does a great job heating, match it with a heat pump to enjoy energy saving benefits and a more complete temperature control experience. That means, the heat pump can act as the primary source of heat in milder temperatures, but when the weather gets cold, your system activates your furnace to deliver the heat you need
- This gas furnace may help you increase your overall cooling efficiency rating by two SEER points when installed as part of a complete system. Plus, save on energy while reducing greenhouse gas emissions with a system that surpasses government energy efficiency standards
- You won't have to worry about this furnace withstanding the test of time. Its cabinet and components are durable and built to deliver comfort for years to come
