Welcome home to comfort. Our AccuComfort™ Platinum 20 Variable Speed Heat Pump comes with AccuComfort™ technology that allows the multi-stage heating and cooling system to consistently adjust to run at a more efficient speed to maintain your personal level of comfort. Plus, with up to 20.5 SEER2 and 10HSPF, the AccuComfort™ Platinum 20 Variable Speed Heat Pump is both efficient and quiet.

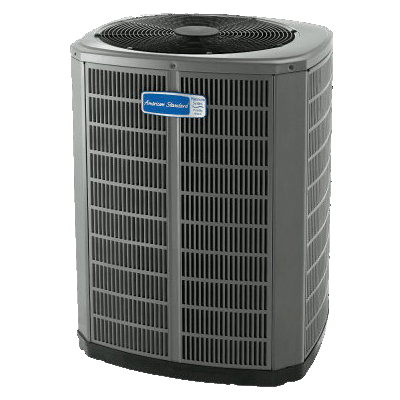

American Standard® Variable Speed Heat Pump, Platinum 20 Series, Model: 5A6V0X36A, 245-385 V, 26 A, 1/2 hp, 60 Hz, 3 ph Phase, 22.4 SEER, 10.5 HSPF, Connection Type: Brazed, Scroll Compressor, R-454B Refrigerant, 5/16 in Liquid Line, 5/8 in Suction Line, 40 A Fuse Rating, 30.8 sq-ft Face Area Coil, Direct Drive, Tonnage: 3 ton, 51 to 74 dBA Sound Level, Steel, Galvanized/Painted, 55 to 120 deg F Cooling, 0 to 66 deg F Heating, 45 in H x 34 in W x 37 in D
- Series Platinum 20 Series
- Shearer-Tonnage 3 Ton
- Shearer-SEER Rating 20 SEER2
- Tonnage 3 ton
- SEER Rating 22.4
- Voltage Rating 245-385 V
- Refrigerant Type R-454B
Catalog- Built with quality materials and innovative features, the AccuComfort™ Platinum 20 Heat Pump is one of the industry's most efficient systems on the market, with ratings up to 20.5 SEER2 and 8.7 HSPF.
- Enjoy calm comfort through variable speed heating and cooling, designed to meet your unique needs. Consistent with 1/2 degree in 1/10th of 1% increments, so you get the comfort you set and the AccuComfort™ technology does the rest.
- Pair your heat pump with a gas furnace to enjoy the benefits of a hybrid system. Once your heat pump reaches its heating capacity, your gas furnace steps in to keep you comfortable. Together, they offer you reliable comfort that could lower your energy costs.
- State-of-the-art, multi-stage heating and cooling system that consistently adjusts to run at a more efficient speed to maintain optimal levels of comfort.
- The lower compressor modulation and fan speeds yield amazingly low sound levels and max out the benefits of AccuClean® Air Cleaner technology, giving you the advantage of optimized air quality.
- Our AccuComfort™ variable-speed heat pumps work smarter to maximize home comfort at a lower operating cost.
- A wider operating range allows our AccuComfort™ system to remain operating when competition's products are cycling on and off.
- Consistent with 1/2 degree in 1/10th of 1% increments, so you get the comfort you set and the AccuComfort™ technology does the rest.
- An AccuComfort™ system can improve heating capacity by as much as 20%.
- The lower compressor modulation and fan speeds yield amazingly low sound levels and max out the benefits of AccuClean™ Air Cleaner technology giving you the advantage of offering the cleane 1/2st system available.
- Built with quality materials, innovative features, durable construction and backed by our independent American Standard Heating & Air Conditioning Dealers to ensure your multi-stage heating and cooling system provides you with dependable comfort for years to come.
- Recognized as the Most Efficient of ENERGY STAR in 2019.
- Pair your heat pump with a gas furnace to create your own hybrid system. Once your heat pump reaches its heating capacity, your gas furnace steps in to keep you comtortable for as long as vou need.
