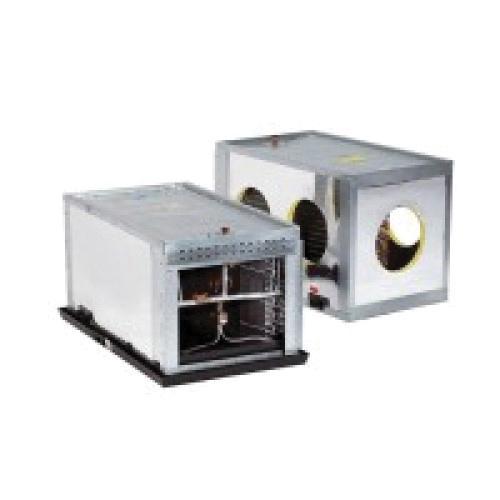

AllStyle Plenum Coil, Series: ASFM Series, Horizontal, R-22, R-410A Refrigerant, Aluminum Fin Coil, 500 psi, 22-1/4 in H x 20-1/4 in W x 34-3/8 in D, Additional Information: 3/4 in FPT Primary Drain, 3/4 in Slip Secondary Drain
Specification Sheet- Cleanable, mold-resistant interior surface
- Fiberglass removed from the air stream
- Pitched, polymer drain pan elevates coil from the condensate
- Top Left and Right Refrigerant drain connections
- Superior air flow compared to other Horizontal coils
- Easily removable top panel with locking air seal and K.O. for UV light
- Factory installed Thermal Expansion Valve
- Long Life Aluminum or Rifled Copper Tube option
- Enhanced Aluminum Fins
- Heavy, Aluminum end plates vs galvanized steel
- Plenum coil combines an adjustable inlet adapter, cooling coil, and supply plenum into one easy install
- Fits furnace 17" to 23" wide
