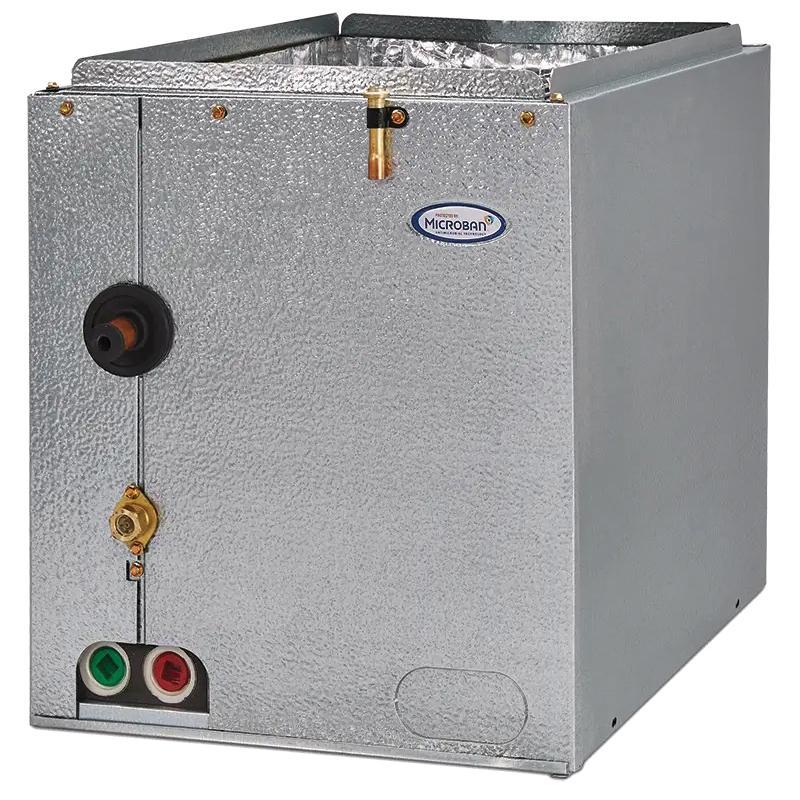

ADP® Multi-Position Coil, Series: HE Series, 48 MBtu/hr, A-Coil, Left-Hand Cased, 1400 to 2000 cfm, R-410A Refrigerant, Evaporator Coil, 7/8 in Connection, ODF Connection, #76 Piston, 500 psi, 450 deg F, Aluminum, 25-1/2 in H x 17-1/2 in W x 21 in D, Additional Information: 3/4 in Cabinet Upper Notch, Non-Bleed HP-A/C TXV Refrigerant Control
Instruction/Installation Manual- High efficiency lanced fin design
- R-22, R-410A, AC and heat pump compatible
- R-454B, R-32, AC and eat pump compatible with refrigerant detection system kit
- Refrigerant detection sensor bracket factory installed
- All coils have durable packaging with bar coded labels on the box
- Threaded expansion valves available factory installed or as a field installed kit
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air
- Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan
- UV resistant drain pans are molded of high temperature (450 deg F) engineered polymer
- Dual 3/4 in FPT condensate drains on front-left and front-right side of drain pans
- Patented HydroTEC™ low water retention drain pan
- Copper refrigerant connections for easy brazing on both copper and aluminum slab models
- Intertek lab tested 1% or less cabinet air leakage for better efficiency
- Cased coil cabinets are fully lined with 5/8 in foil faced insulation
- Short cabinet with easy access
- Non-captive refrigerant lines with long stubs make for easy installation
- Enhanced refrigerant pipe grommets: secure, tight, and easy to install
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
- Multi-position coils are upflow, left or right airflow capable
