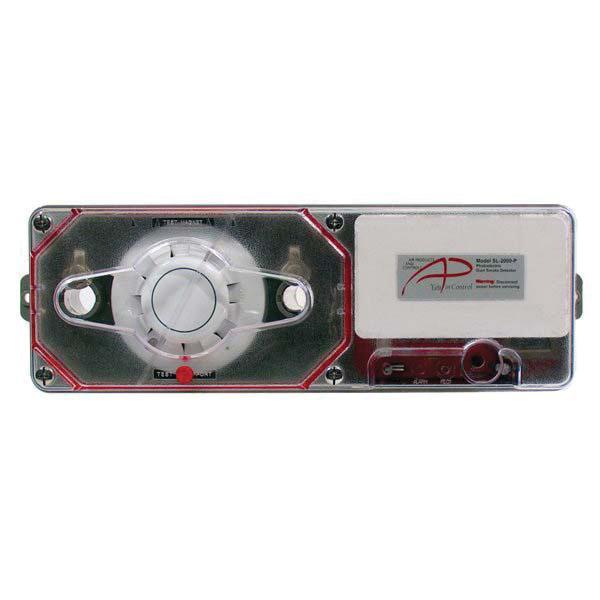

AAI - AAI SL-2000-P Photoelectric Duct Smoke Detector, Photoelectric Alarm Sensor, Green Pilot, Red Alarm Visual Indicator
- Item #: SL-2000-P
- Manufacturer: SL-2000-P selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: AAI
- Min. Order Qty: 1
- Qty. Interval: 1
The SL-2000-P photoelectric conventional duct detector is the latest innovation for early detection of smoke and products of combustion present in air moving through HVAC ducts in commercial, industrial and residential applications.
AAI Photoelectric Duct Smoke Detector, Photoelectric Detection Method, Smoke Alarm, Green Pilot, Red Alarm Visual Indicator, 10 to 85 % Humidity Rating, Photoelectric Alarm Sensor, LED Display, 24 - 230 VAC, 24 VDC, Polycarbonate, Gray, 114.3 mm Width, 57.15 mm Height, 342.9 mm Depth
- Listed for velocities between 100-4000 ft/min
- Listed for high-temperature applications
- Interconnect up to 30 units for common functions
- Patented "no-tools required" front or rear loading and removing sampling/exhaust tubes
- Patented "test port valve" allows for aerosol smoke testing without cover removal
- Clear cover fitted with four captive "no-tools required" thumbscrews
- Instantaneous cover removal trouble indication
- Staggered terminal blocks for easier wiring
- Flashing LED on detector head indicates normal operation
- Magnet test capability (magnet included)
- More wiring space than competitive models
- Footprint allows easy retrofit in many Applications without additional drilling
- Duct wall gaskets on back of enclosure are pre-installed
- Compatible with the WP-2000 weatherproof enclosure
- Reset switch is also an alarm test switch - competitive models require a magnet or cover removal to test at unit
- Unit includes green pilot and red alarm visual indicators
- External mounting tabs do not require cover removal to install
- Colored cover gasket indicates proper cover seal
- Compact, lightweight size means easy handling, lower shipping costs
- Two sets of 10A form "C" alarm contacts
